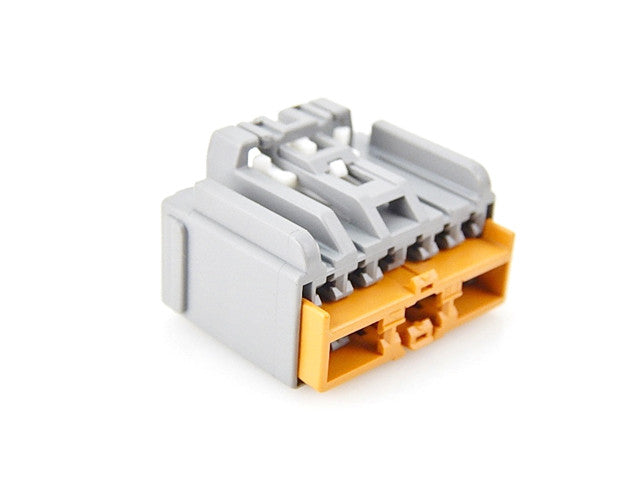

7283-5916-40

Manufacturer	Position(s)	Category/Series	Sealed Connection	Gender	Color/Plating	Classification	Datasheet
Yazaki	12	YES/YESC Kaizen Series Connectors \| 2.8X0.8	Unsealed	Female	Light Gray	Housing	Yes

7283-5916-40

$6.97

/ each

Out of stock
Don't see inventory? We'll source it for you.

Need help with choosing the right product?

Click here to reach out to one of our experts.

Manufacturer	Position(s)	Category/Series	Sealed Connection	Gender	Color/Plating	Classification	Datasheet
Yazaki	12	YES/YESC Kaizen Series Connectors \| 2.8X0.8	Unsealed	Female	Light Gray	Housing	Yes

7283-5916-40

Yazaki

7283-5916-40

7283-5916-40

Select options

Product specifications

Specifications for 7283-5916-40
Manufacturer	Yazaki
Product type	Housing
Series	YESC 2.8 unsealed / YESC Header
Number of positions	12
Gender	Female
Color	Light Grey
Sealing	Unsealed
Polarity	A

Terminals 3

Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.

7116-4111-02

7116-4111-02 2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16

7116-4112-02

7116-4112-02 2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14

7116-4110-02

7116-4110-02 2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20

Used with 1

Use the listed polarity and configuration; standard and CPA versions are alternatives.

7382-5568-40 Male housing | 12 poles; polarity A; Light Grey 2.8mm H-Header | 12 poles; polarity A; Light Grey 2.8mm Header Currently unavailable
