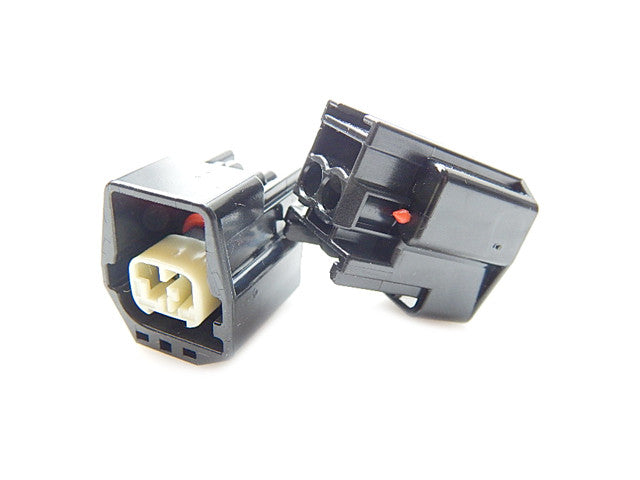

YES/YESC Kaizen Series Connectors | 1.5X0.8 Sealed 2 Position Female Black Housing
7283-5548-30
Regular price
$1.74
Minimum order: 25
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 25 | $1.74 | $43.50 |
| 86 | $1.38 | $118.68 |
| 258 | $1.21 | $312.18 |
| 860 | $1.03 | $885.80 |
YES/YESC Kaizen Series Connectors | 1.5X0.8 Sealed 2 Position Female Black Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC 1.5 sealed |
| Number of positions | 2 |
| Gender | Female |
| Color | Black |
| Sealing | Sealed |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Covers and mounting 1
Terminals 4
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7116-4103-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4103-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4102-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4102-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
Seals and plugs 3
Select wire outside diameter and seal size; plug unused cavities only.
Used with 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
