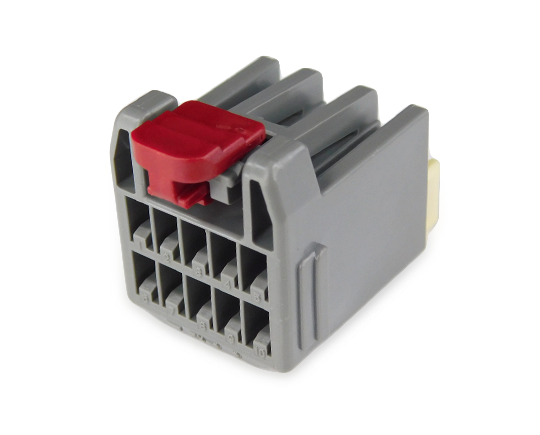

7283-5909-40
7283-5909-40 7283-5909-40
Yazaki Connector

Yazaki

7283-5909-40

Regular price $2.49
/ each

Minimum order: 50

100 in stock, ready to be shipped

Need help with choosing the right product?

Click here to reach out to one of our experts.

Yazaki Connector

Request Pricing & Availability

Need this part? We'll check availability, pricing, and lead time through our supplier network.

Part Number 7283-5909-40
Manufacturer Yazaki
✓ Check supplier availability ✓ Request lead time ✓ Request pricing

Product specifications

Specifications for 7283-5909-40
ManufacturerYazaki
Product typeHousing
SeriesYESC 1.5 unsealed / YESC Header
Number of positions10
GenderFemale
SealingUnsealed
Complete your assembly

Associated parts

Browse accessories, components, and catalog-linked options.

Catalog references

Terminals 4

Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.

7116-4101-08 7116-4101-08 1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16 $0.89 View part 7116-4100-08 7116-4100-08 1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20 $0.39 View part 7116-4100-02 7116-4100-02 1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20 $0.39 View part 7116-4101-02 1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16 $0.39 View part

Used with 2

Use the listed polarity and configuration; standard and CPA versions are alternatives.

7382-6379-30 Male housing | 10 poles; polarity B; Black 1.5mm Header Currently unavailable View part 7382-5884-40 Male housing | 10 poles; polarity A; Light Grey 1.5mm Header Currently unavailable View part
