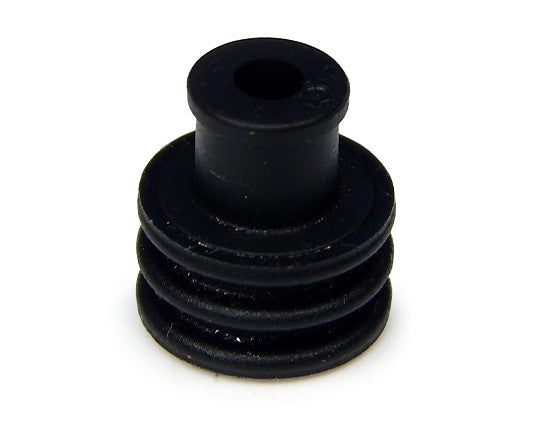

Yazaki - YES/YESC Kaizen Series Connectors Sealed Both Black Wire Seal
7158-3083
Regular price
$0.49
Minimum order: 100
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 100 | $0.49 | $49.00 |
| 500 | $0.39 | $195.00 |
| 1000 | $0.29 | $290.00 |
| 8000 | $0.25 | $2,000.00 |
| 16000 | $0.19 | $3,040.00 |
Yazaki - YES/YESC Kaizen Series Connectors Sealed Both Black Wire Seal
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Cable seal |
| Color | Black |
| Material | Silicone |
| Wire outside diameter | 3.1 – 3.7 mm |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Used with 6
Select seal by wire outside diameter; gauge alone does not determine insulation diameter. Use cavity plugs only for unused positions.
7114-4141-02
6.3 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7116-4140-02
6.3 mm terminal; Plating: Sn; Europe wire mm2: 0.5 ~ 1.0; U.S. wire AWG: 20 ~ 16
7114-4140-02
6.3 mm terminal; Plating: Sn; Europe wire mm2: 0.5 ~ 1.0; U.S. wire AWG: 20 ~ 16
7116-4142-02
6.3 mm terminal; Plating: Sn; Europe wire mm2: 4.0; U.S. wire AWG: 12
7114-4142-02
6.3 mm terminal; Plating: Sn; Europe wire mm2: 4.0; U.S. wire AWG: 12
7116-4141-02
6.3 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
Used with 5
Select wire outside diameter and seal size; plug unused cavities only.
7282-5595-10
Male housing | 4 poles; polarity A; Dark Grey
7283-5596-10
Female housing | 2 poles; polarity A; Dark Grey
7282-5596-10
Male housing | 2 poles; polarity A; Dark Grey
7283-5929-10
Female housing | 4 poles; polarity A; Dark Grey
7283-5928-10
Female housing | 2 poles; polarity A; Dark Grey
