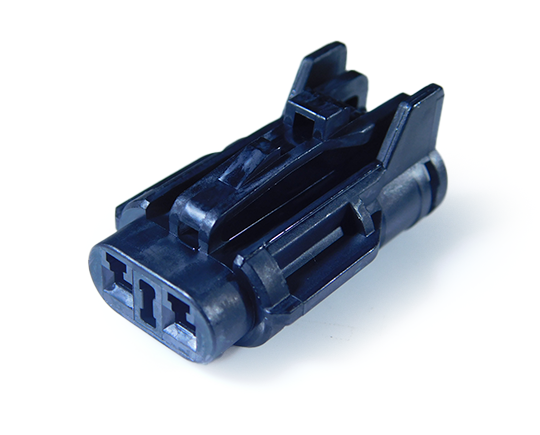

KET - SWP 2F HOUSING
MG610320-5
Regular price
$1.79
Minimum order: 20
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 20 | $1.79 | $35.80 |
| 200 | $0.98 | $196.00 |
| 500 | $0.79 | $395.00 |
| 1000 | $0.68 | $680.00 |
| 5000 | $0.59 | $2,950.00 |
KET - SWP 2F HOUSING
Product specifications
| Manufacturer | KET |
|---|---|
| Product type | Wire-to-Wire Connector |
| Product category | Automotive Connectors > Wire To Wire Connector |
| Product family | Wire To Wire Connector |
| Series | SWP SERIES |
| Technology | Pitch 6.2 mm; Primary lock: HSG Lance; Contact resistance: 3mΩ MAX; Insulation resistance: DC 500V 250MΩ MIN; TPA: YES |
| Number of positions | 2 |
| Gender | Female |
| Color | Black |
| Material | PBT |
| Sealing | Sealed |
| Terminal size | .070 in |
| Wire section | avs*cavs) 0.3~0.85,avs(cavs) 1.25~2.0 |
| Current rating | 9 A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Mating counterparts 2
KET identifies these products as matching plug and receptacle counterparts.
Compatible accessories 3
KET lists these products as compatible accessories. Select the appropriate option for your connector family and application.
