BHP22: 22 kW AC three-phase bidirectional operation (7.3 kW AC single phase)
BHP19: 19.2 kW AC single bidirectional operation
Parallelable in charge mode
AC charger - SAE J1772 and EN 61851 compliance
DC fast charging (CCS) communication (optional)
DIN 70121, ISO 15118
AC plug locking/unlocking management
HVDC interlock monitoring
Typical efficiency >94%
AC/DC galvanic isolation
UDS, functional safety (ASIL-A), cybersecurity compliant
IP67, IP6K9K protection rating
HVDC outputs are short-circuit and reverse polarity protected
Fully CAN monitored and controlled (v2.0B and FD)
SAE J1939 compliant
UL1741, IEEE1547 compliant

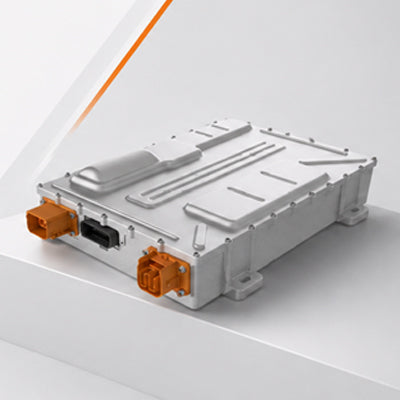

BHP19
