Offset Arrow

Part #	Description	Color	Typical Mount Size	Max. Panel Thickness	Bundle Diameter	Material	HHBN 150° C Part #
20142-0	15 mm Offset Slot Std	Black	7 mm x 12.0 mm	≤ 3.0 mm	1.6 - 38.1 mm	PA66 IMHS

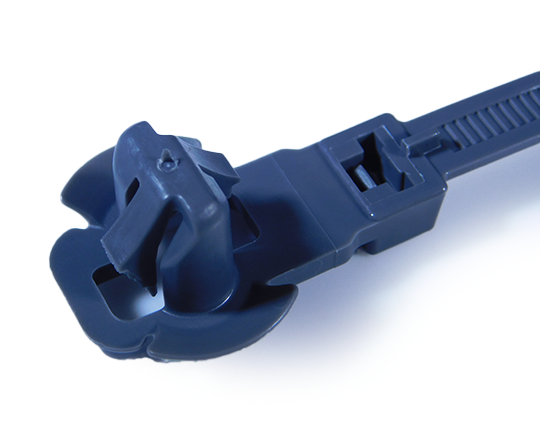

20143-0	15 mm Offset Slot Rev	Gray	7 mm x 12.0 mm	≤ 3.0 mm	1.6 - 38.1 mm	PA66 IMHS
20144-0	25 mm Offset Slot Std	Black	7 mm x 12.0 mm	≤ 3.0 mm	1.6 - 38.1 mm	PA66 IMHS

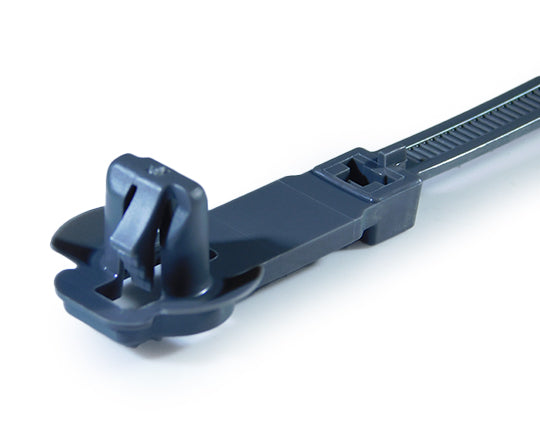

20147-0	25 mm Offset Slot Rev	Gray	7 mm x 12.0 mm	≤ 3.0 mm	1.6 - 38.1 mm	PA66 IMHS
20148-0	35 mm Offset Slot Std	Black	7 mm x 12.0 mm	≤ 3.0 mm	1.6 - 38.1 mm	PA66 IMHS
20149-0	35 mm Offset Slot Rev	Gray	7 mm x 12.0 mm	≤ 3.0 mm	1.6 - 38.1 mm	PA66 IMHS	20149-HHBN
