Offset Round Hole Fir Tree

Offset Round Hole Fir Tree
Part # Description Color Typical Mount Size Max. Panel Thickness Bundle Diameter Material HS Part # HHBN 150° C Part #

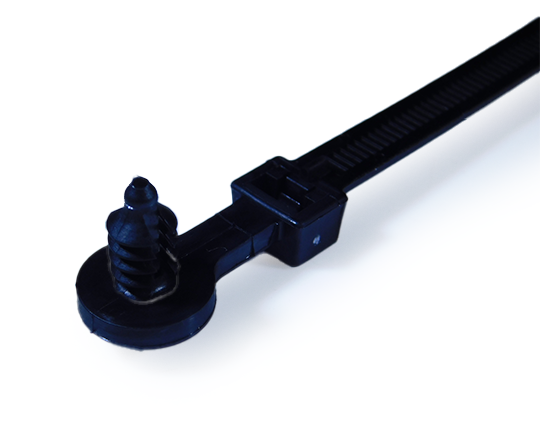

20136-0 M6 15 mm Offset Std Black M6 ≤ 7.0 mm 6.3 - 47.6 mm PA66 IMHS
20137-0 M6 15 mm Offset Rev Gray M6 ≤ 7.0 mm 6.3 - 47.6 mm PA66 IMHS

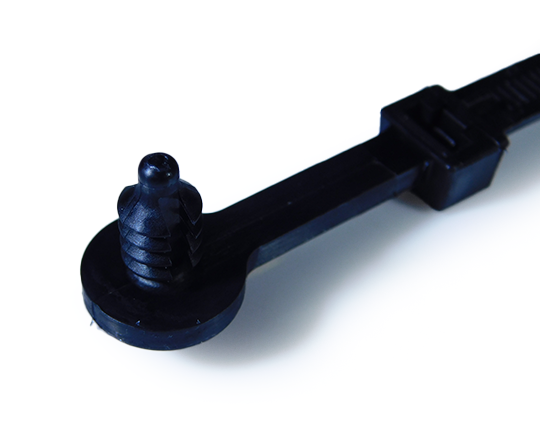

20058-0 6 mm Offset Std Black M6 ≤ 6.0 mm 1.6 - 44.5 mm PA66 IMHS
20066-0 6 mm Offset Rev Gray M6 ≤ 6.0 mm 1.6 - 44.5 mm PA66 IMHS
20159-0 15 mm Offset Std Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 38.1 mm PA66 IMHS

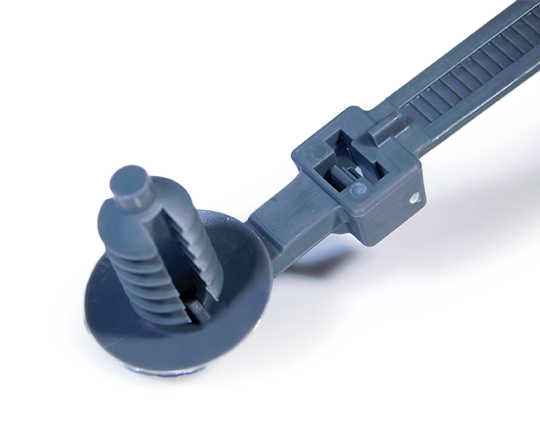

20161-0 15 mm Offset Rev Gray Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 38.1 mm PA66 IMHS 20161-HHBN

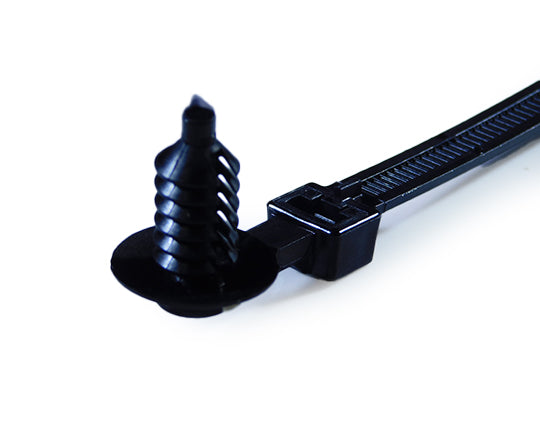

20135-0 15 mm Offset Std Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 47.6 mm PA66 IMHS

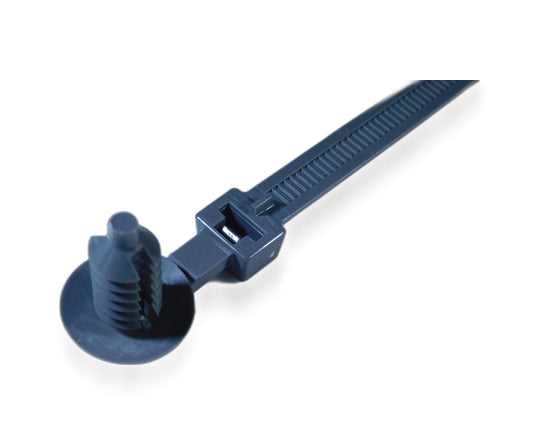

20129-0 15 mm Offset Rev Gray Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 47.6 mm PA66 IMHS
20005-0 25 mm Offset Blk Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS

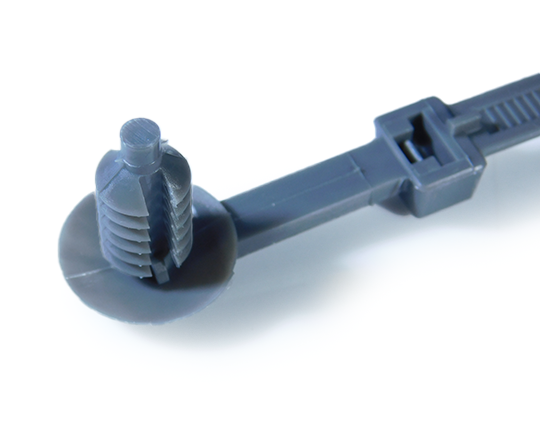

20027-0 25 mm Offset Rev Gray Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS
20160-0 25 mm LIFT Offset Std Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 38.1 mm PA66 IMHS 20193-0
20162-0 25 mm Offset Rev Gray Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 38.1 mm PA66 IMHS 20162-HHBN

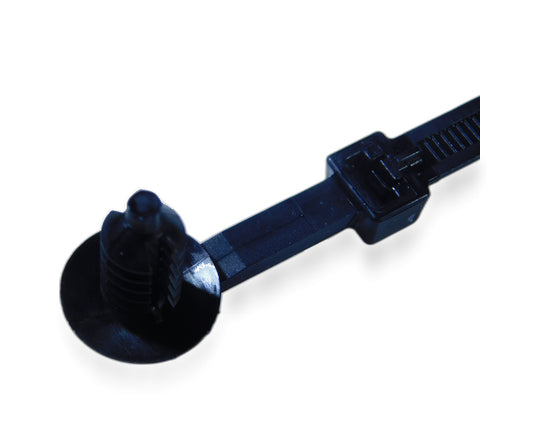

20132-0 25 mm Offset Std Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 47.6 mm PA66 IMHS 20132-HHBN

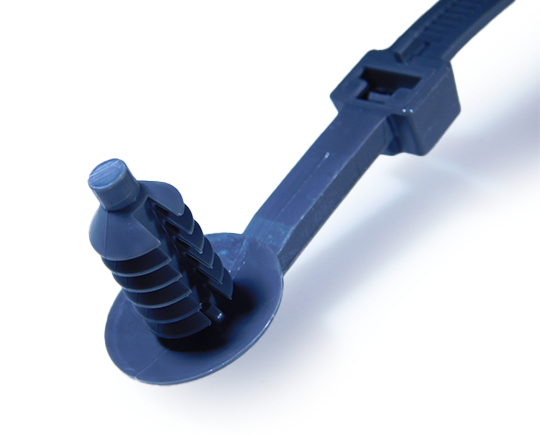

20133-0 25 mm Offset Rev Gray Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 47.6 mm PA66 IMHS 20133-HHBN
20121-0 25 mm Offset Std Black Ø 7.75 - 8.25 mm / M10 ≤ 7.0 mm 6.3 - 44.5 mm PA66 IMHS
20122-0 25 mm Offset Rev Gray Ø 7.75 - 8.25 mm / M10 ≤ 7.0 mm 6.3 - 44.5 mm PA66 IMHS 20122-HHBN
20073-0 25 mm Offset Rev Gray Ø 9.25 - 9.75 mm ≤ 7.0 mm 1.6 - 47.6 mm PA66 IMHS
20032-0 25 mm Offset Std Black Ø 9.25 - 9.75 mm ≤ 7.0 mm 1.6 - 47.6 mm PA66 IMHS
