Round Hole Fir Tree

Round Hole Fir Tree
Part # Description Color Typical Mount Size Max. Panel Thickness Bundle Diameter Material HS Part # HHBN 150° C Part #
10710-0 Fir Tree Small Black M6 ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS
20106-0 Fir Tree Standoff Black Ø 6.35 mm ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS 20106-HHBN
20120-0 4 Flute LIFT Black Ø 6.35 - 6.85 mm ≤ 3.0 mm 1.6 - 38.1 mm PA66 IMHS 20173-0 20120-HHBN
20042-0 4 Flute Curved Tie Black Ø 6.35 - 6.85 mm ≤ 3.0 mm 1.6 - 44.5 mm PA66 IMHS 20242-HHBN
20002-0 4 Flute Curved Tie Gray Ø 6.35 - 6.85 mm ≤ 3.0 mm 1.6 - 44.5 mm PA66 IMHS
20154-0 M6 Threaded LIFT Black M6 ≤ 7.0 mm 1.6 - 38.1 mm PA66 IMHS 20195-0 20154-HHBN

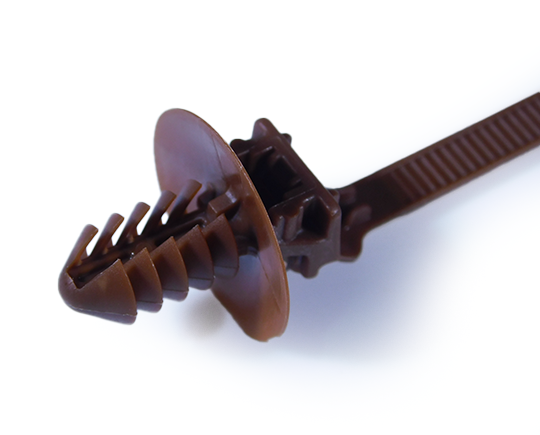

20171-0 4.5" LIFT Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 30.0 mm PA66 IMHS 20172-0 20171-HHBN

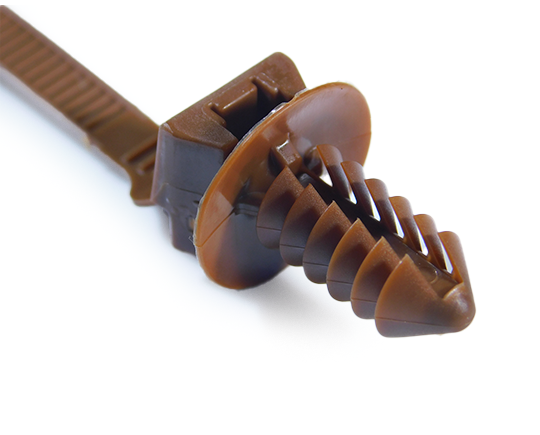

20140-0 5.5" LIFT Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 35.0 mm PA66 IMHS 20168-0 20140-HHBN

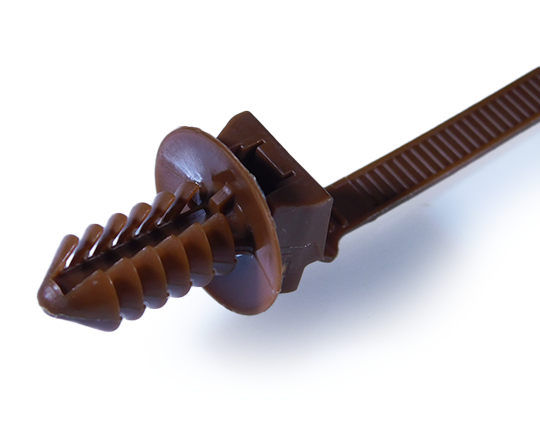

20098-0 7.5" LIFT Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS 20169-0 20098-HHBN
20105-0 7.5" LIFT Gray Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS
20038-0 7 Flute Curved Tie Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS
20091-0 7 Flute Curved Tie Gray Ø 6.35 - 6.85 mm ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS
10711-0 7.5" Fir Tree On Strap Black Ø 6.35 - 6.85 mm ≤ 7.0 mm 6.35 - 47.6 mm PA66 IMHS
10719-0 7.5" Fir Tree On Strap Gray Ø 6.35 - 6.85 mm ≤ 7.0 mm 6.35 - 47.6 mm PA66 IMHS
10709-0 1.5" Fir Tree Std Black Ø 6.35 - 6.85 mm ≤ 6.0 mm 1.6 - 44.5 mm PA66 IMHS
20094-0 8mm Curved Tie Black Ø 7.75 - 8.25 mm / M10 ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS
20049-0 M10 Fir Tree Black Ø 7.75 - 8.25 mm / M10 ≤ 3.0 mm 1.6 - 44.5 mm PA66 IMHS
20050-0 8mm Fir Tree Gray Ø 7.75 - 8.25 mm / M10 ≤ 3.0 mm 1.6 - 44.5 mm PA66 IMHS

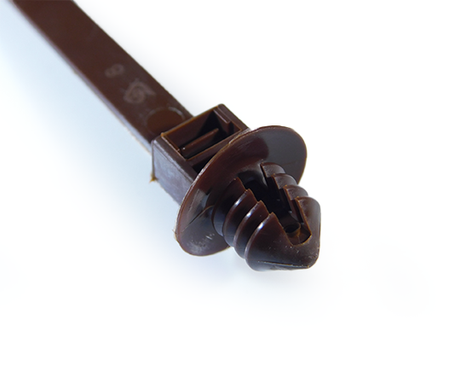

20086-0 Fir Tree Stopper Tie Brown Ø 7.75 - 8.25 mm / M10 ≤ 3.0 mm 22.3 - 44.5 mm PA66 IMHS

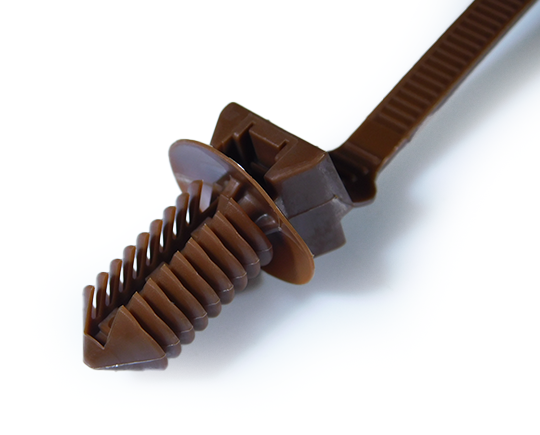

20117-0 7.5" Long 8mm Fir Tree Black Ø 7.75 - 8.25 mm / M10 ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS 20194-0 20117-HHBN
20127-0 7.5" Long 8mm Fir Tree Natural Ø 7.75 - 8.25 mm / M10 ≤ 7.0 mm 1.6 - 44.5 mm PA66 IMHS 20103-HHBN
20103-0 Fir Tree Black Ø 9.75 - 10.25 mm ≤ 5.0 mm 1.6 - 44.5 mm PA66 IMHS
20110-0 11.5mm LIFT Black Ø 11.25 - 11.75 mm ≤ 8.5 mm 1.6 - 44.5 mm PA66 IMHS
