Stud Mount
| Part # | Description | Color | Typical Mount Size | Max. Panel Thickness | Bundle Diameter | Material | HS Part # | HHBN 150° C Part # |
|---|---|---|---|---|---|---|---|---|

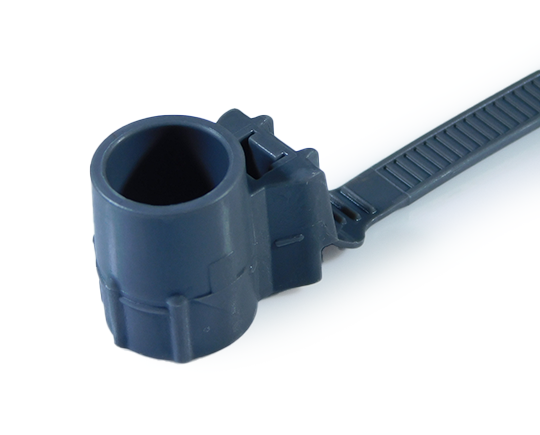

| 20145-0 | T5/M5 Compact Weld | Gray | M5/T5 | 1.6 mm - 38.1 mm | PA66 IMHS | |||

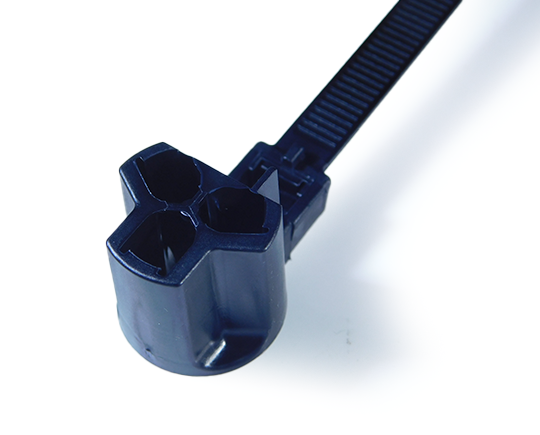

| 10708-0 | T5/M5/M6 Weld Stud | Black | T5/M5/M6 | 1.6 mm - 44.5 mm | PA66 IMHS | 20192-0 | 10808-HHBN | |

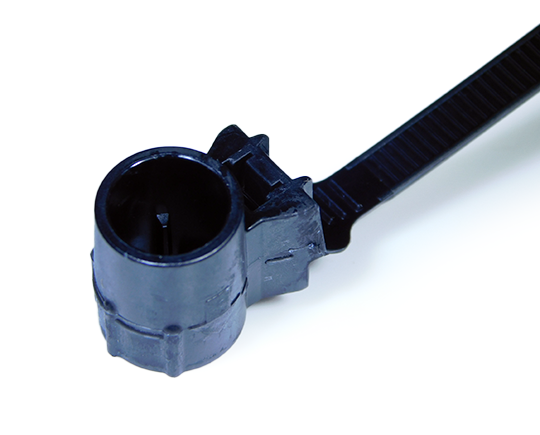

| 20146-0 | M6 Compact Weld Stud | Black | M6 | 1.6 mm - 38.1 mm | PA66 IMHS | 20176-0 | 20146-HHBN | |

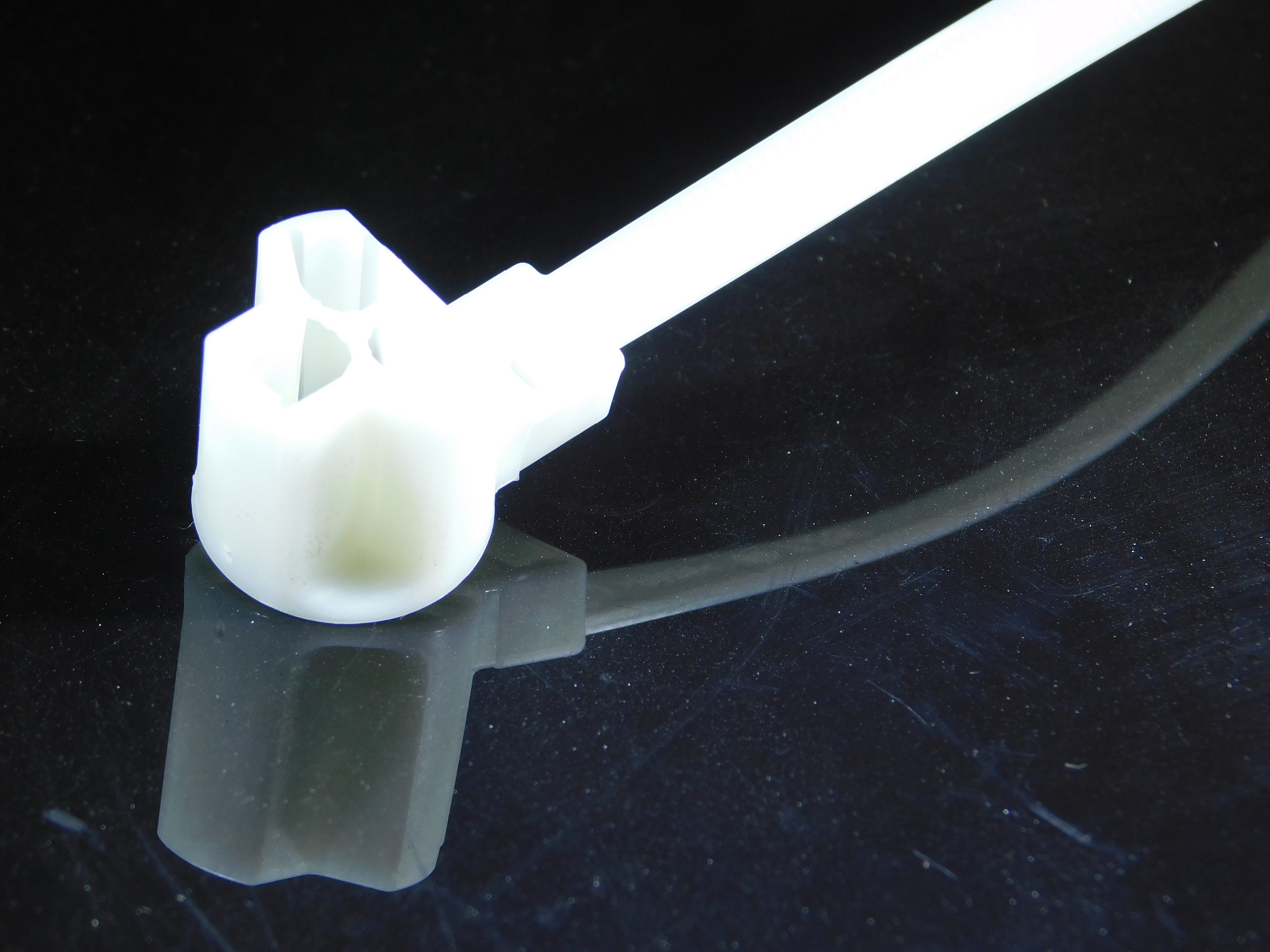

| 20015-0 | T5/M5/M6 Weld Stud | Natural | T5/M5/M6 | 1.6 mm - 44.5 mm | PA66 IMHS | |||

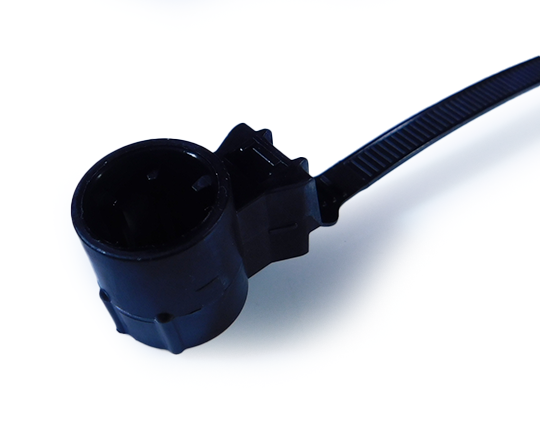

| 20152-0 | M8 Compact Weld Stud | Black | M8 | 1.6 mm - 38.1 mm | PA66 IMHS | 20152-HHBN | ||

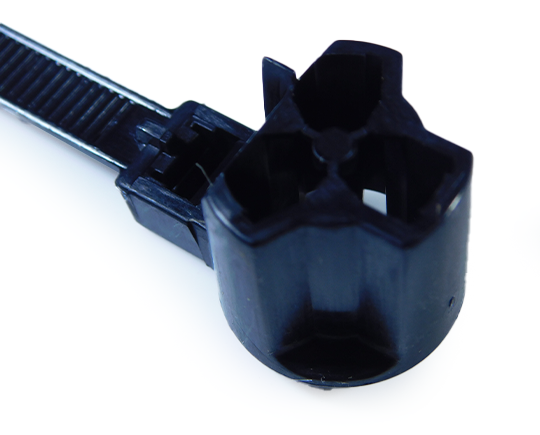

| 20011-0 | M8 Weld Stud | Black | M8 | 1.6 mm - 44.5 mm | PA66 IMHS | |||

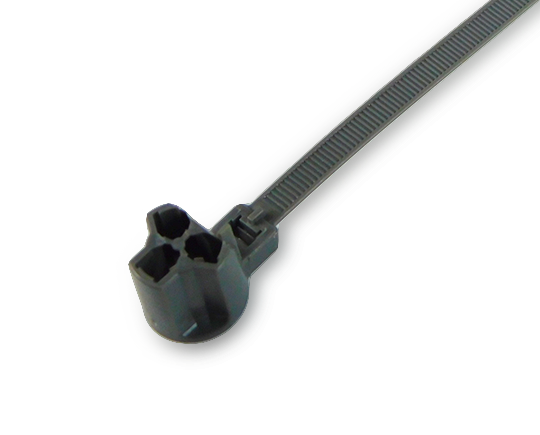

| 20013-0 | M8 Weld Stud | Gray | M8 | 1.6 mm - 44.5 mm | PA66 IMHS | |||

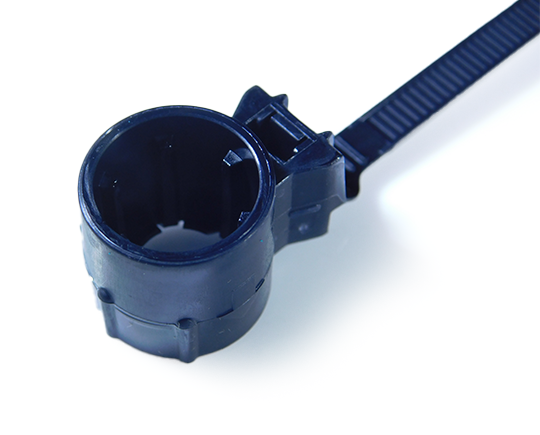

| 20153-0 | M10 Compact Weld Stud | Black | M10 | 1.6 mm - 38.1 mm | PA66 IMHS | 20153-HHBN | ||

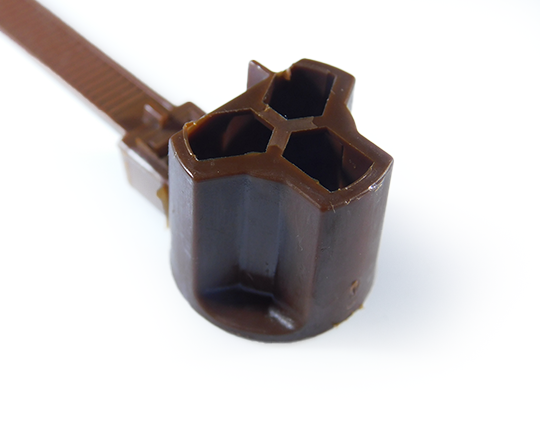

| 20014-0 | M10 Weld Stud | Brown | M10 | 1.6 mm - 44.5 mm | PA66 IMHS | |||

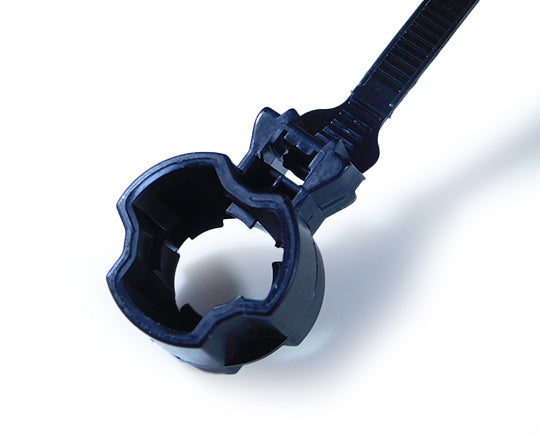

| 20116-0 | M12 Weld Stud | Black | M12 | 1.6 mm - 44.5 mm | PA66 IMHS | |||

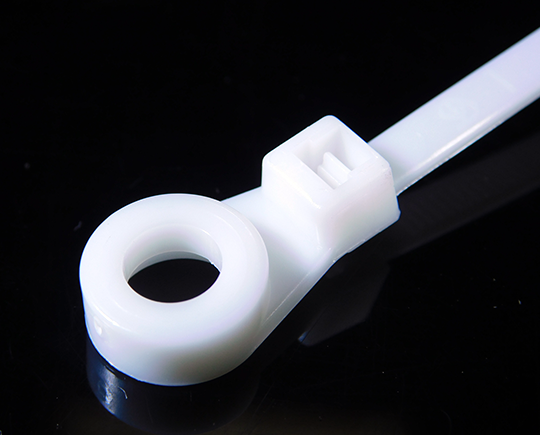

| 20085-0 | 6.35 mm Screw Mount | Natural | 6.35 mm | 6.3 mm - 44.5 mm | PA66 IMHS | |||

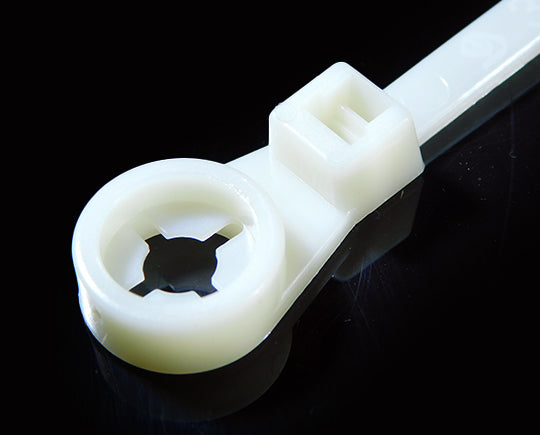

| 20062-0 | M5/M6 Mount Tie | Natural | M5/M6 | 1.6 mm - 44.5 mm | PA66 IMHS | |||

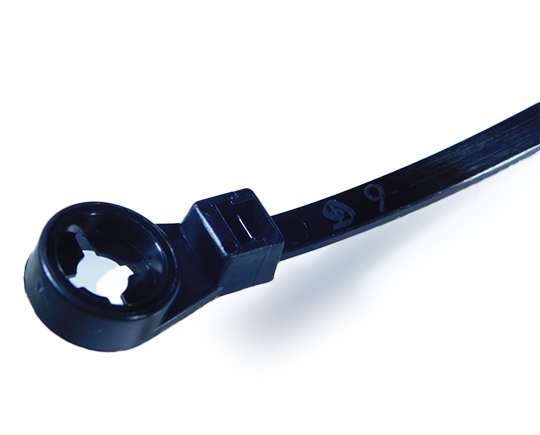

| 20051-0 | M5/M6 Screw Mount | Black | M5/M6 | 1.6 mm - 44.5 mm | PA66 IMHS | |||
| 20065-0 | 25 mm Offset Screw Mount | Black | M5/M6 | 1.6 mm - 44.5 mm | PA66 IMHS | |||

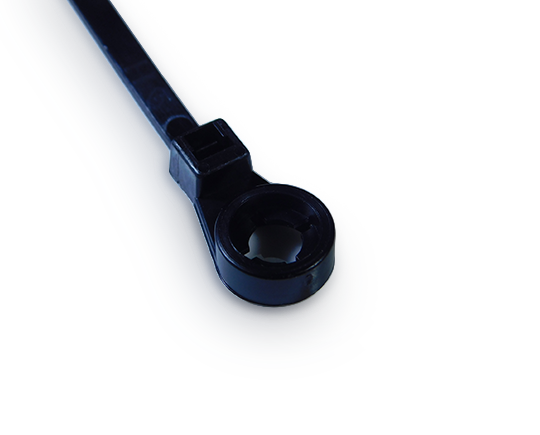

| 20045-0 | M6 Screw Mount | Black | M6 | 6.3 mm - 44.5 mm | PA66 IMHS | |||

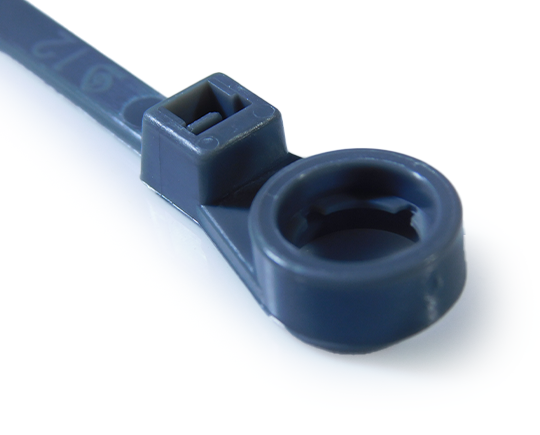

| 20044-0 | M8 Screw Mount | Gray | M8 | 6.3 mm - 44.5 mm | PA66 IMHS | |||

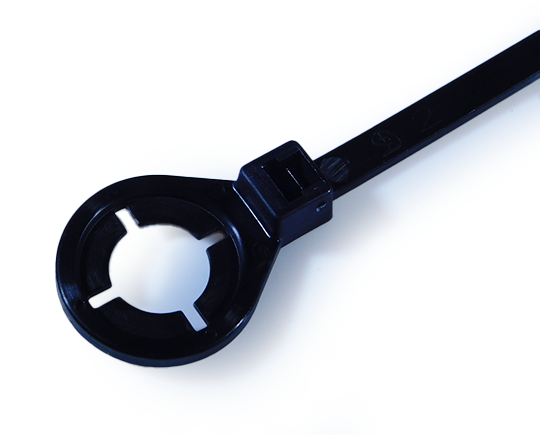

| 20139-0 | M10 Screw Mount | Black | M10 | 6.3 mm - 44.5 mm | PA66 IMHS |
