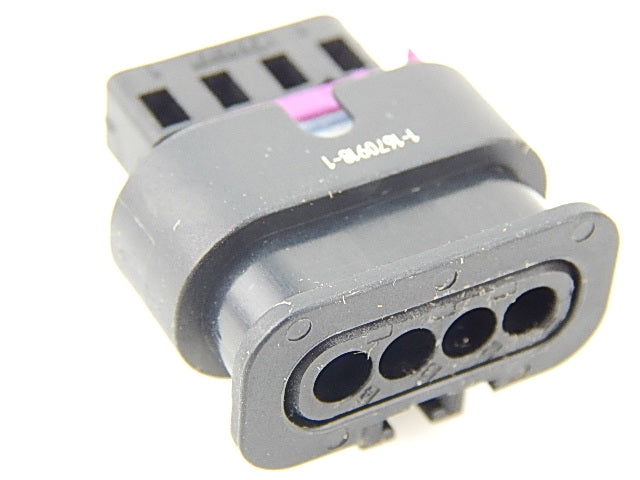

CONN TE LV MCON 1-1670918-1 4WAY F
CONN TE LV MCON 1-1670918-1 4WAY F
Product specifications
| Manufacturer | TE Connectivity |
|---|---|
| Product type | Automotive Housings |
| Product category | Automotive Parts |
| Product family | MCON |
| Series | MCON 1.2mm |
| Technology | Connector system: Wire-to-Wire; Application: Power |
| Packaging | Quantity: 1500; Method: Box |
| Number of positions | 4 |
| Gender | Contact: Receptacle |
| Color | Black |
| Material | Housing: PA 66 GF30 |
| Sealing | Sealable: Yes; IP rating: IPX4K,IPX9K |
| Polarity | A |
| Terminal size | 1.2mm |
| Current rating | 25 A |
| Voltage rating | 12 VDC |
| Operating temperature | -40 – 130 °C[-40 – 266 °F]; -40 – 130 °C |
| Full height | 16.5 mm[.64 in]; 16.5 mm |
| Terminal width | 1.2 mm[.04 in]; 1.2 mm |
| Shape | Rectangular |
| Overall length | 24.7 mm[.97 in] |
| Cable entry | 180 ° |
| Catalog bag / box quantity | 1500 |
| Overall width | 26.5 mm[1.04 in] |
| Protection class | IPX4K,IPX9K |
