A
Key A
Part Number
EPC0014800030
Available through Nexus Electronics, an official Royal Die & Stamping dealer for electrical and electronic solutions.
Engineered for Demanding Vehicle Connections

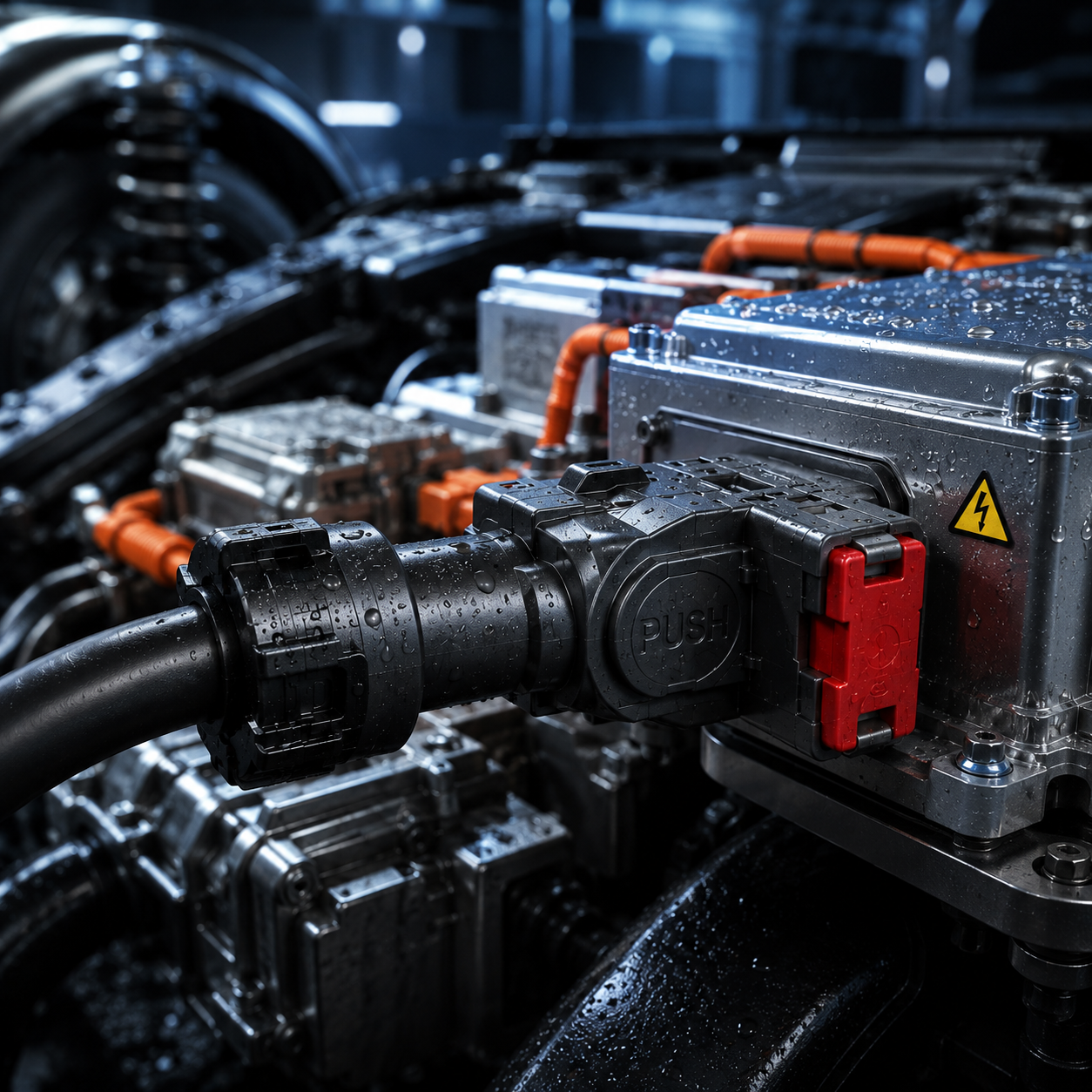

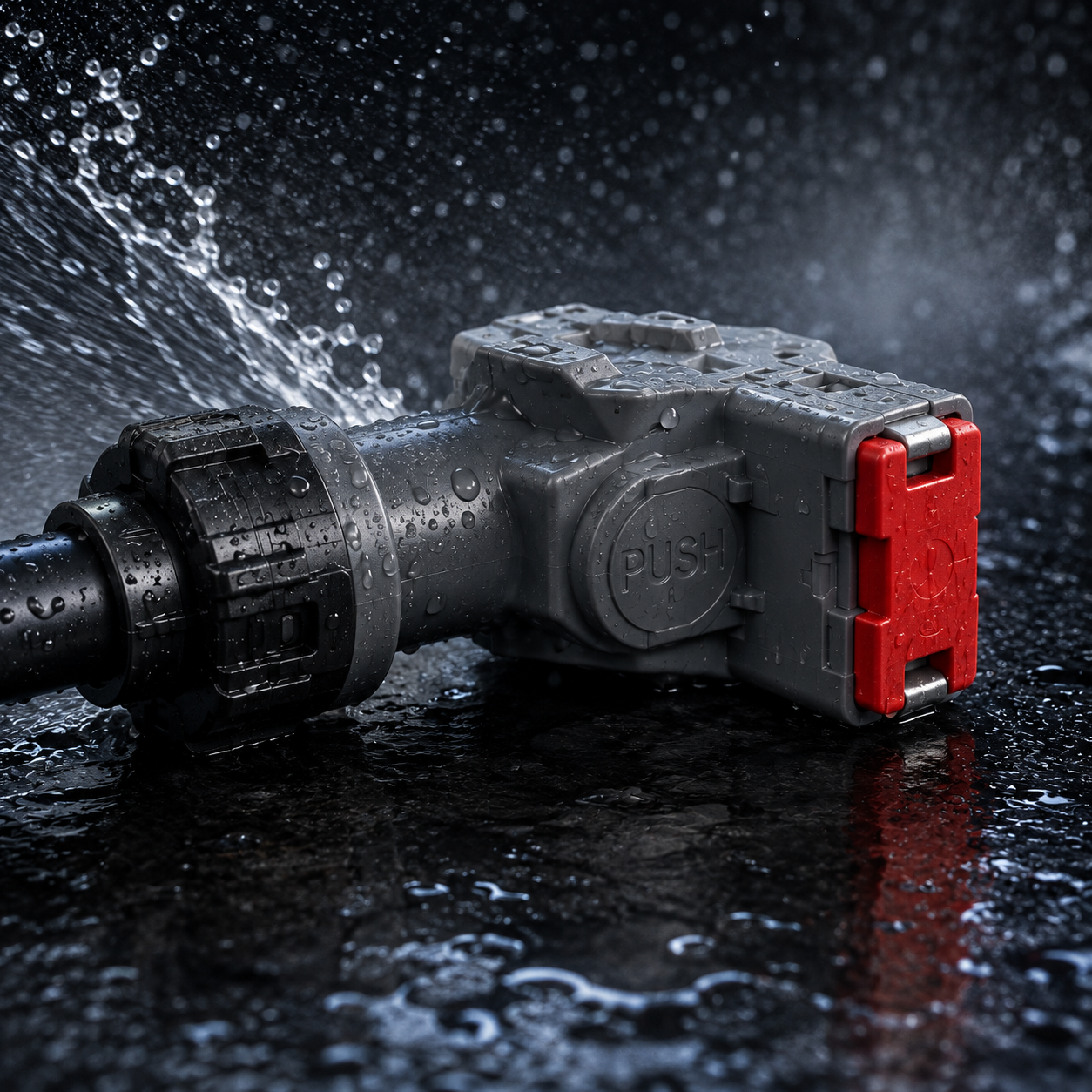

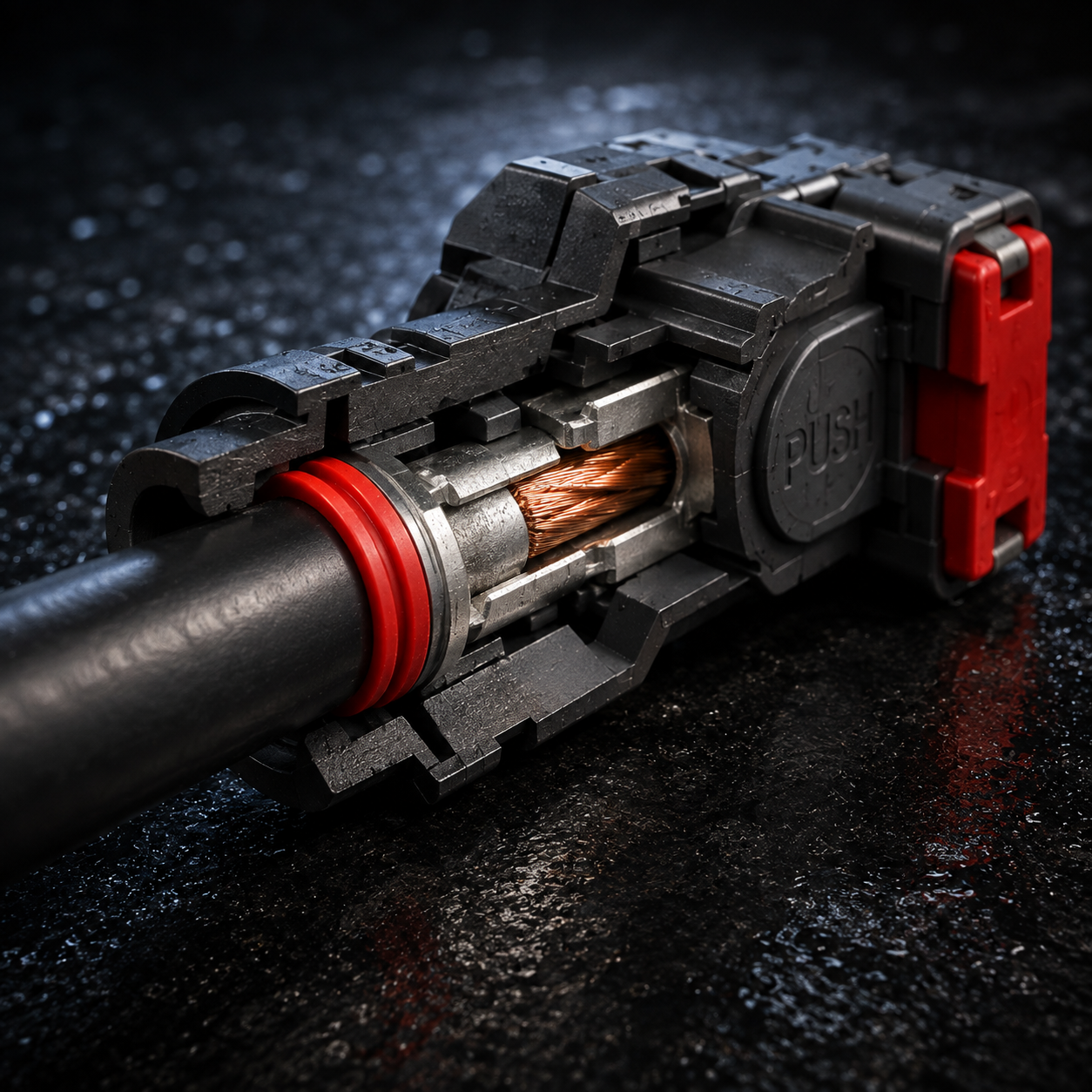

The RD8 Male Connector Assembly is designed for low-voltage vehicle electrical systems and combines a sealed 90° architecture with an integrated male terminal and ultrasonic-welded wire termination.
The system incorporates multiple design features intended to simplify assembly, help prevent incorrect installation, and provide verification of proper connector mating.

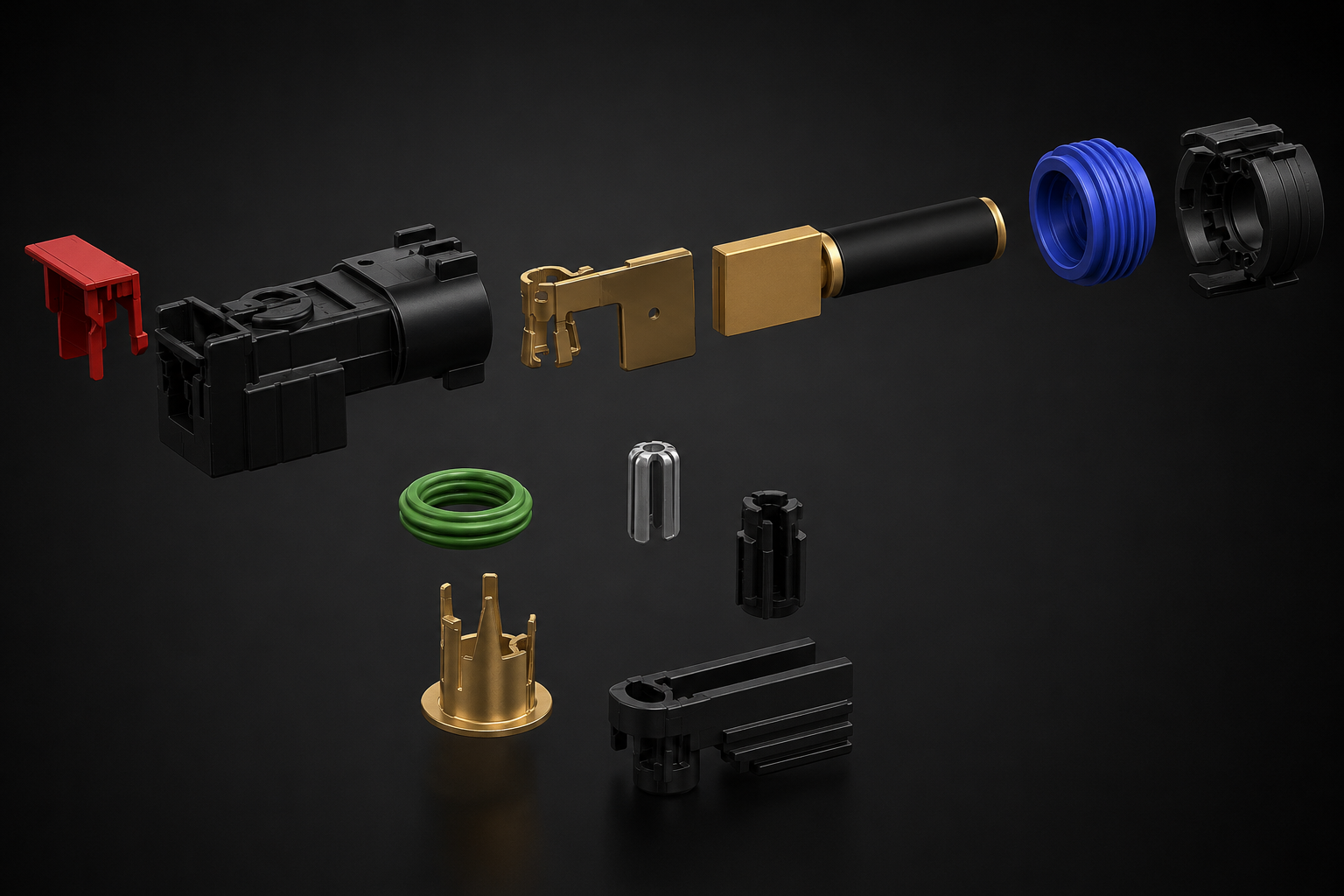

RD8 1P Sealed Male 90° Connector
(12 O'CLOCK "A" KEYWAY BLACK)

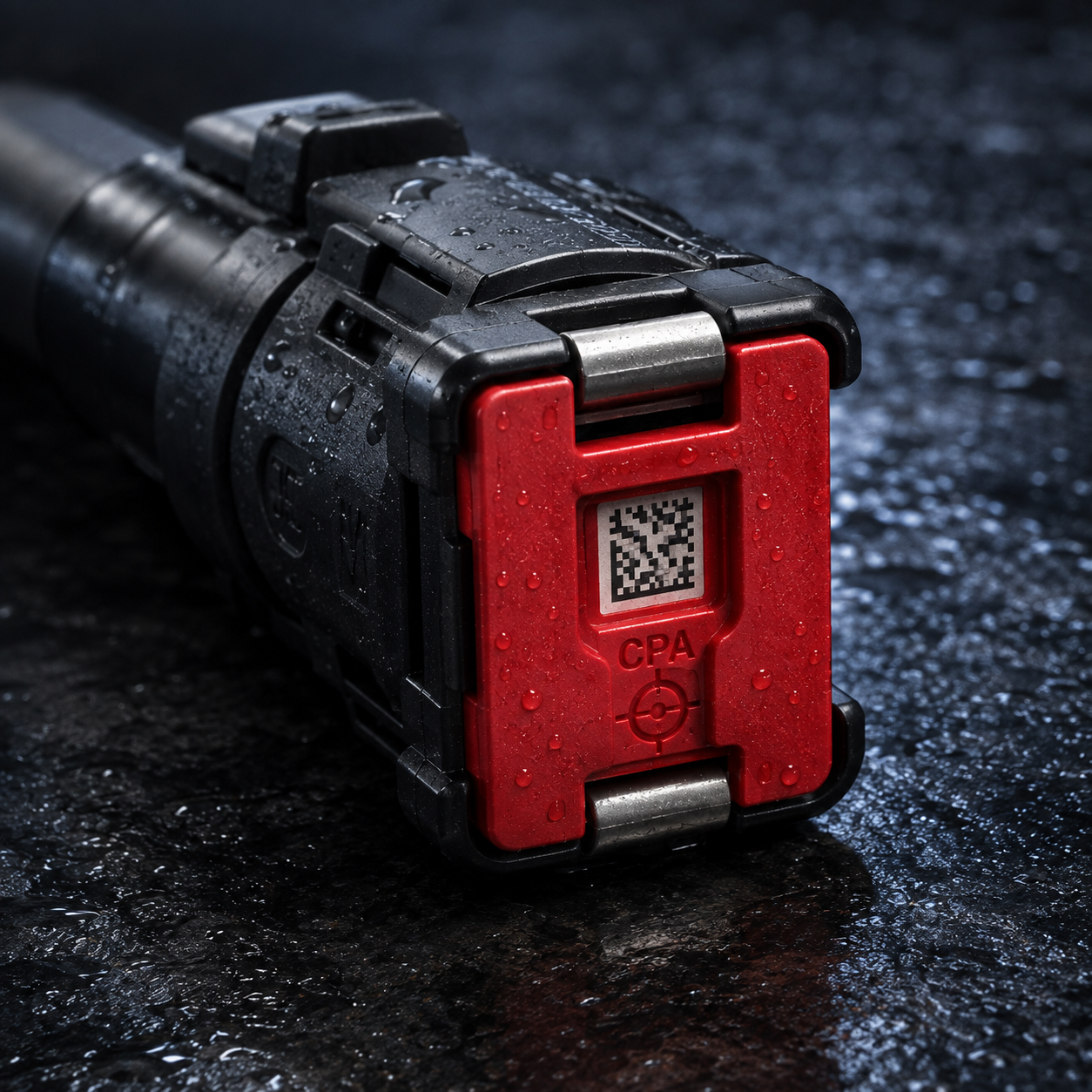

CPA
Seal
RD8 90° Male Housing Interface Peripheral
RD8 ISL
RD8 Spring
RD8 Round Cap
(Spring Retainer)
RD8 Male Terminal
RD8 90° Male Terminal Retainer Housing
RD8 Cable Seal 50mm²
Cable Seal Retainer 50mm²
RD8 Male Housing
(12 O'Clock "A" Keyway Black)
RD8 Connection System

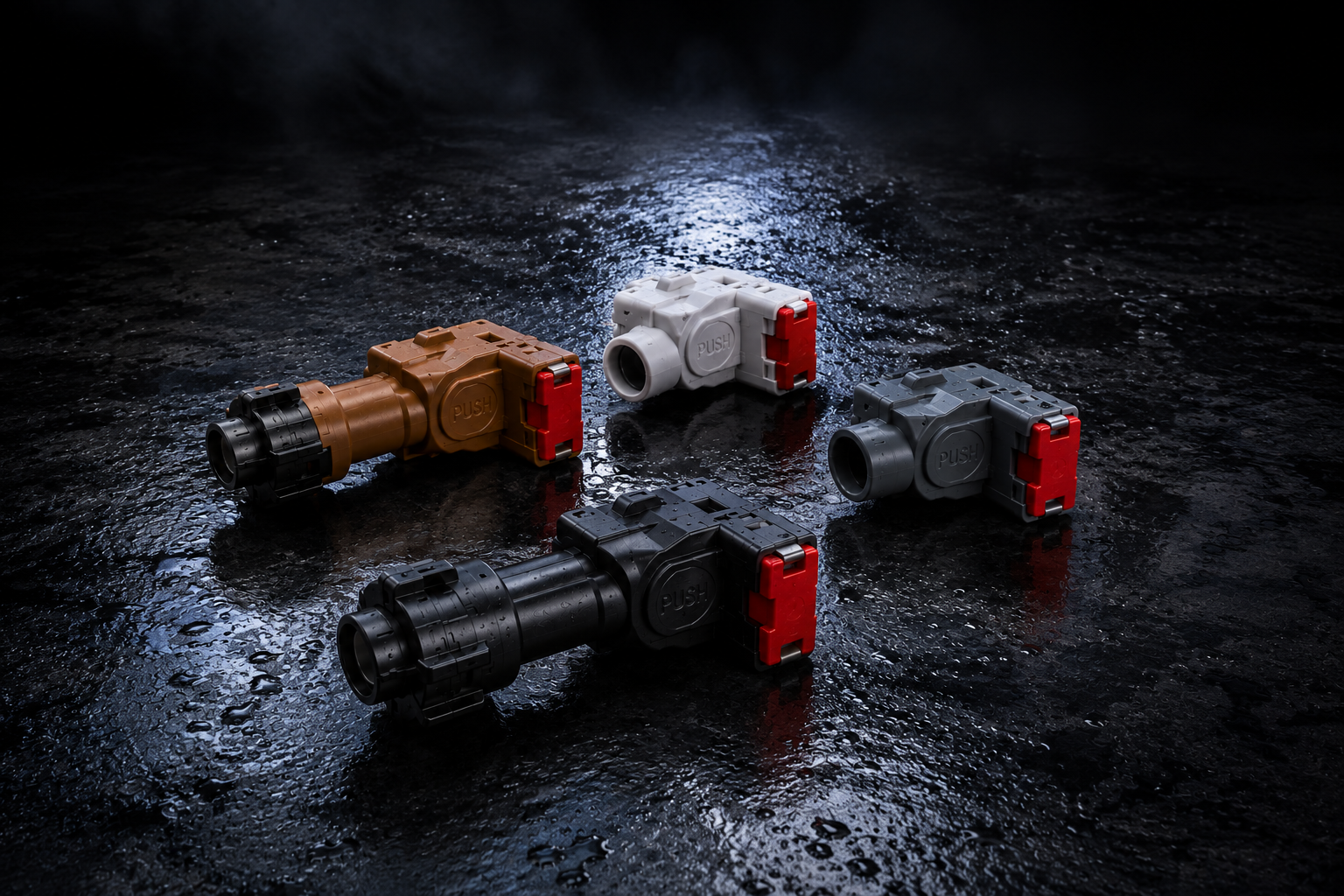

Four Keyways. One Connection Platform.
The RD8 platform is available in four keyed housing configurations, providing distinct mechanical interfaces while maintaining a common connection architecture.
Need RD8 Components for Production?
Source individual components or discuss production-level stocking for your program.
Nexus Electronics can help you identify the correct RD8 configuration, source the required components, and support production quantity requirements.
