Convoluted tubing
Start with the tube
Compare tubing by nominal size, construction, and material. Check the inside and outside diameters against your wire bundle and mating accessories.
Nexus Electronics · Featured Manufacturer
Schlemmer
Route the harness.
Protect the wiring.
Explore Schlemmer convoluted tubing, branching parts, connector interfaces, and conduit accessories. Choose a starting point, then match the tube profile, dimensions, and routing details to your assembly.
Schlemmer componentsHarness routing & cable protectionPart number sourcing
01 / The Schlemmer line
Build protection around
every branch.
Schlemmer develops cable-management and protection components for vehicle and industrial applications. The Nexus selection brings together tubing, manifolds, connector interfaces, and conduit accessories. Use the finder to narrow the options, then confirm the complete part number and assembly fit against your drawing.
02 / Product families
Find your starting point.
Click an image to select its category in the finder. More Schlemmer product types are available below.

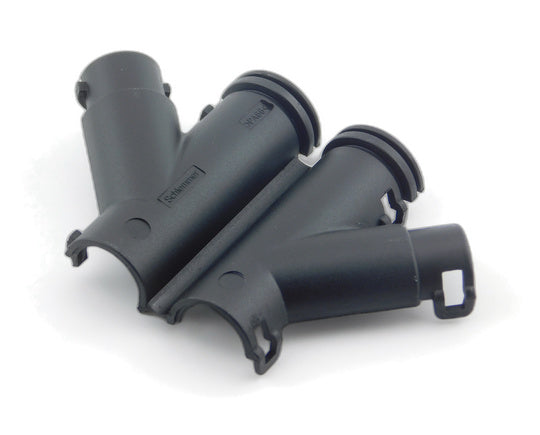

Manifolds & branching
Plan each branch
Explore branching parts by family, form, and output profiles. Confirm each outlet size, tube profile, and locking detail for the harness route.

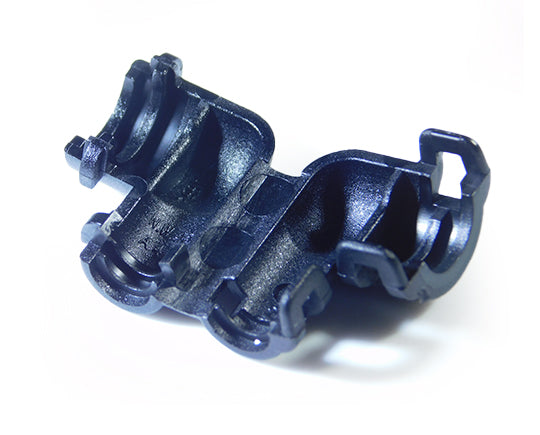

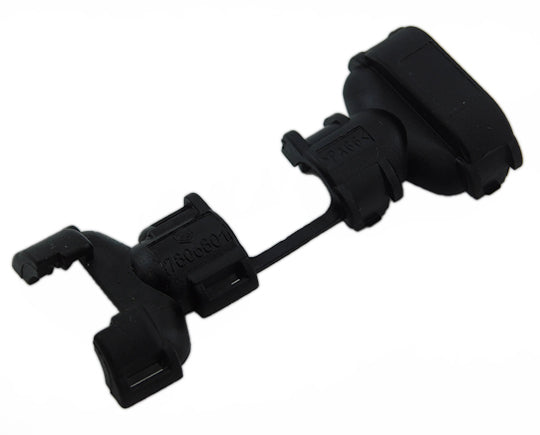

Connector interfaces
Match the transition
Narrow interfaces by connector, shape, and suitable nominal diameter. Verify the tubing-to-connector fit and routing orientation before selecting a part.

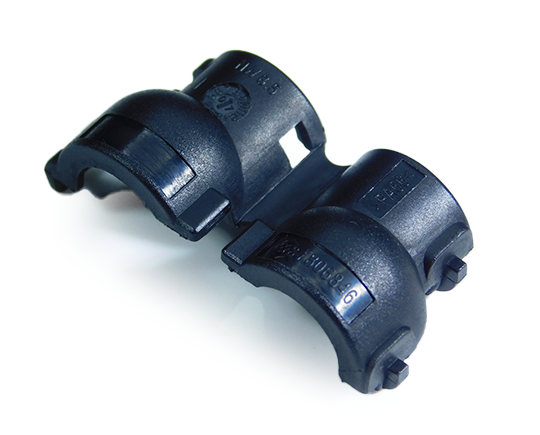

Conduit accessories
Complete the conduit
Explore reducers, holders, clips, and end caps by subtype and family. Check the tube profile, nominal size, and assembly fit for each accessory.
Representative products shown. Configurations vary by part number.
03 / Selection essentials
The right part starts with the right details.
- 01Match the tube profile and nominal size across tubing, branching parts, and connector interfaces.
- 02Verify outlet dimensions, routing orientation, and connector fit against the assembly drawing.
- 03Check material, temperature, and installation requirements for each part before confirming your selection.
Looking for a specific Schlemmer part?
Send your part number, required quantity, and key specifications. Our team can help confirm pricing, availability, and sourcing options for your request.
