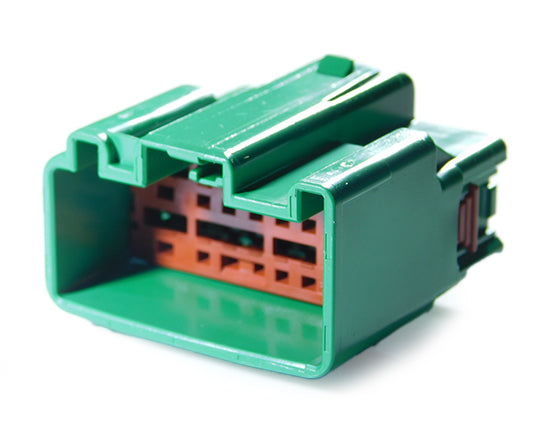

YES/YESC Kaizen Series Connectors | Hybrid Unsealed 14 Position Male Green Housing
7282-5623-60
Regular price
$4.36
Minimum order: 10
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 10 | $4.36 | $43.60 |
| 25 | $3.71 | $92.75 |
| 100 | $3.15 | $315.00 |
YES/YESC Kaizen Series Connectors | Hybrid Unsealed 14 Position Male Green Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC Hybrid |
| Number of positions | 14 |
| Gender | Male |
| Color | Green |
| Polarity | B |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Covers and mounting 1
Terminals 7
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7114-4100-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4100-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4111-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7114-4101-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7114-4110-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4112-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7114-4101-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
Connectors and housings 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
