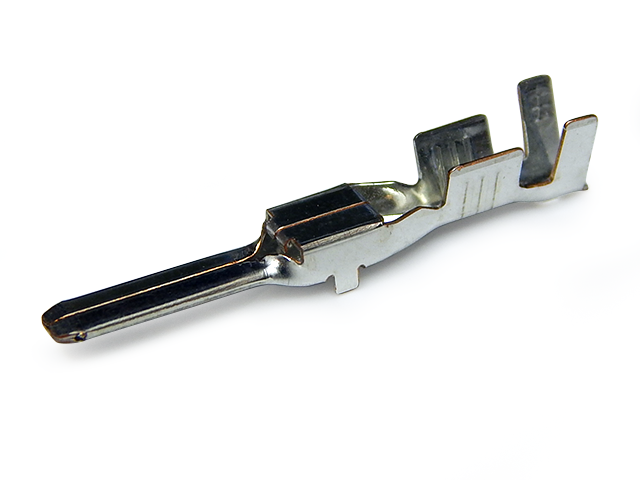

YES/YESC Kaizen Series Connectors Unsealed Male Tin Plating Terminal
7114-4112-02
Regular price
$0.39
Minimum order: 200
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 200 | $0.39 | $78.00 |
| 500 | $0.29 | $145.00 |
| 1000 | $0.24 | $240.00 |
| 3500 | $0.19 | $665.00 |
| 14000 | $0.15 | $2,100.00 |
YES/YESC Kaizen Series Connectors Unsealed Male Tin Plating Terminal
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Terminal |
| Gender | Male |
| Plating | Tin (Sn) |
| Terminal size | 2.8 mm |
| Wire gauge | 14 AWG |
| Wire section (Europe) | 1.5 – 2.5 mm² |
| Wire section (Japan) | 2.0 mm² |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Used with 31
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7282-6445-40
Male housing | 2 poles; polarity A; Light Grey
7282-4192-40
Male housing | 43 poles; polarity B; Light Grey 34x1.5, 6x2.8, 3x6.3
7282-3243-40
Male housing | 8 poles; polarity A; Light Grey
7282-6376-30
Male housing | 26 poles; polarity A; Black 22x1.5, 2x2.8, 2x6.3
7282-5623-60
Male housing | 14 poles; polarity B; Green 10x1.5, 4x2.8
7282-6467-40
Male housing | 12 poles; polarity A; Light Grey
7282-6459-40
Male housing | 10 poles; polarity A; Light Grey 6x1.5, 4x2.8
7282-6569-40
Male housing | 13 poles; polarity A; Light Grey 11x2.8,2x6.3
7282-9450-30
Male housing | 20 poles; polarity A; Black 6x2.8, 14x1.5
7282-6447-40
Male housing | 14 poles; polarity A; Light Grey 10x1.5, 4x2.8
7282-6457-40
Male housing | 10 poles; polarity A; Light Grey
7282-6466-40
Male housing | 6 poles; polarity A; Light Grey
7282-9150-30
Male housing | 34 poles; polarity A; Black 1x6.3, 6x2.8, 27x1.5
7282-6537-30
Male housing | 26 poles; polarity A; Black 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7282-8393-80
Male housing | 26 poles; polarity E; Brown 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7282-8392-60
Male housing | 26 poles; polarity D; Green 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7282-2784-30
Male housing | 38 poles; polarity A; Black 30x0.64, 8.2.8
Currently unavailable
7282-5623-30
Male housing | 14 poles; polarity B; Black 10x1.5, 4x2.8
Currently unavailable
7282-5624-90
Male housing | 14 poles; polarity C; Blue 10x1.5, 4x2.8
Currently unavailable
7282-5580-40
Male housing | 7 poles; polarity A; Light Grey
Currently unavailable
7282-5563-40
Male housing | 3 poles; polarity A; Light Grey
Currently unavailable
7282-5625-40
Male housing | 13 poles; polarity A; Light Grey 11x2.8, 2x6.3
Currently unavailable
7282-8391-40
Male housing | 26 poles; polarity C; Light Grey 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7282-5566-60
Male housing | 4 poles; polarity B; Green
Currently unavailable
7282-5624-80
Male housing | 14 poles; polarity C; Brown 10x1.5, 4x2.8
Currently unavailable
7282-6468-60
Male housing | 12 poles; polarity B; Green
Currently unavailable
7282-9152-40
Male housing | 34 poles; polarity B; Light Grey 1x6.3, 6x2.8, 27x1.5
7282-8390
Male housing | 26 poles; polarity B; Natural 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7282-6446-40
Male housing | 4 poles; polarity A; Light Grey
7282-6448-40
Male housing | 8 poles; polarity A; Light Grey 6 x1.5, 2x2.8
