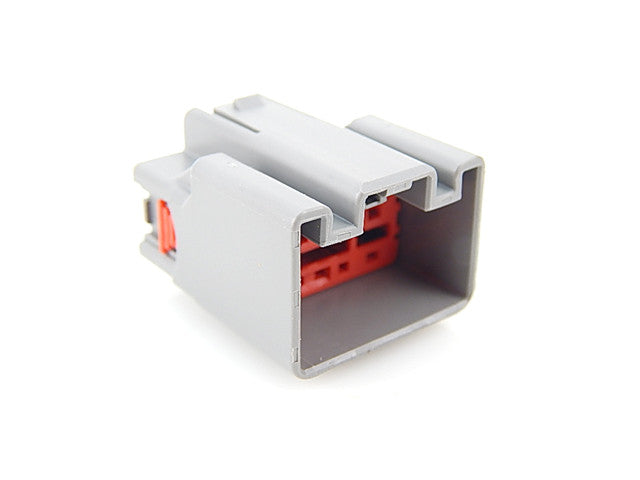

YES/YESC Kaizen Series Connectors | Hybrid Unsealed 10 Position Male Light Gray Housing
7282-6459-40
Regular price
$3.54
Minimum order: 20
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 20 | $3.54 | $70.80 |
| 50 | $3.01 | $150.50 |
| 100 | $2.56 | $256.00 |
YES/YESC Kaizen Series Connectors | Hybrid Unsealed 10 Position Male Light Gray Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC KAIZEN Hybrid |
| Number of positions | 10 |
| Gender | Male |
| Color | Light Grey |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Covers and mounting 1
Terminals 6
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7114-4100-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4100-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4101-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7114-4110-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4112-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7114-4101-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
Connectors and housings 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
