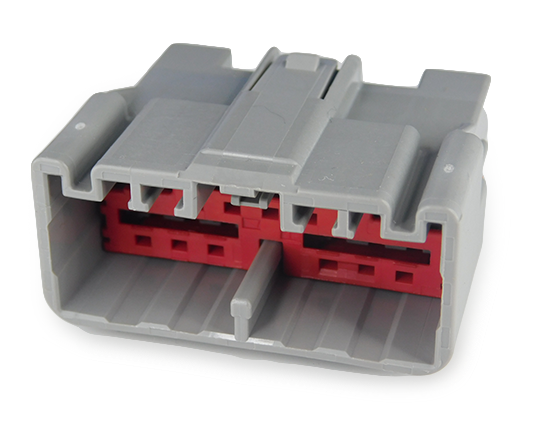

Yazaki - YES/YESC Kaizen Series Connectors | Hybrid Unsealed 13 Position Male Light Gray Housing
7282-6569-40
Regular price
$3.15
Minimum order: 20
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 20 | $3.15 | $63.00 |
| 50 | $2.68 | $134.00 |
| 100 | $2.23 | $223.00 |
| 300 | $1.77 | $531.00 |
Yazaki - YES/YESC Kaizen Series Connectors | Hybrid Unsealed 13 Position Male Light Gray Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC KAIZEN Hybrid |
| Number of positions | 13 |
| Gender | Male |
| Color | Light Grey |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Covers and mounting 1
Terminals 5
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7114-4121-02
6.3 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7114-4110-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4112-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7114-4122-02
6.3 mm terminal; Plating: Sn; Europe wire mm2: 4.0; U.S. wire AWG: 12
7114-4120-02
6.3 mm terminal; Plating: Sn; Europe wire mm2: 0.5 ~ 1.0; U.S. wire AWG: 20 ~ 16
Connectors and housings 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
