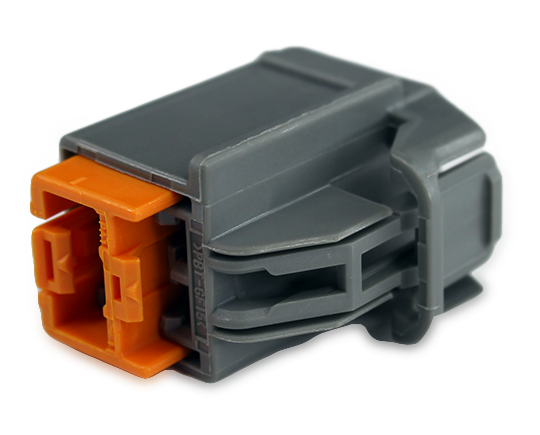

Yazaki - YES/YESC Kaizen Series Connectors | 2.8X0.8 Unsealed 4 Position Female Light Gray Housing
7283-6446-40
Regular price
$2.95
Minimum order: 20
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 20 | $2.95 | $59.00 |
| 50 | $2.46 | $123.00 |
| 100 | $2.20 | $220.00 |
| 250 | $1.89 | $472.50 |
| 1000 | $1.58 | $1,580.00 |
Yazaki - YES/YESC Kaizen Series Connectors | 2.8X0.8 Unsealed 4 Position Female Light Gray Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC KAIZEN 2.8 unsealed |
| Number of positions | 4 |
| Gender | Female |
| Color | Light Grey |
| Sealing | Unsealed |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 6
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7116-4111-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4112-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7116-4110-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4271-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4272-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7116-4270-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
Used with 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
