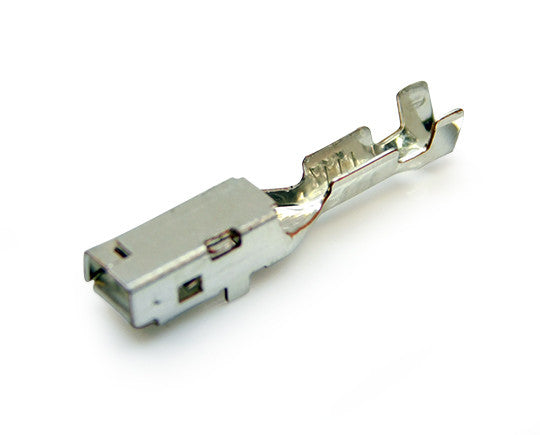

YES/YESC Kaizen Series Connectors Unsealed Female Tin Plating Terminal
7116-4270-02
Regular price
$0.59
Minimum order: 100
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 100 | $0.59 | $59.00 |
| 500 | $0.49 | $245.00 |
| 1000 | $0.39 | $390.00 |
| 3500 | $0.29 | $1,015.00 |
| 17500 | $0.24 | $4,200.00 |
YES/YESC Kaizen Series Connectors Unsealed Female Tin Plating Terminal
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Terminal |
| Gender | Female |
| Plating | Tin (Sn) |
| Terminal size | 2.8 mm |
| Wire gauge | 22 – 20 AWG |
| Wire section (Europe) | 0.35 – 0.5 mm² |
| Wire section (Japan) | 0.3 – 0.5 mm² |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Used with 1
Catalog identifies KAIZEN as preferred for equal performance and lower insertion force; confirm application.
Used with 18
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7283-6445-40
Female housing | 2 poles; polarity A; Light Grey
7283-6569-40
Female housing | 13 poles; polarity A; Light Grey 11x2.8,2x6.3
7283-6447-40
Female housing | 14 poles; polarity A; Light Grey Hybrid 10x1.5, 4x2.8 | 14 poles; polarity A; Light Grey 10x1.5, 4x2.8 | 14 poles; polarity A; Light Grey 6.3mm Header
7283-6457-40
Female housing | 10 poles; polarity A; Light Grey
7283-6466-40
Female housing | 6 poles; polarity A; Light Grey
7283-6467-40
Female housing | 12 poles; polarity A; Light Grey 2.8mm H-Header | 12 poles; polarity A; Light Grey | 12 poles; polarity A; Light Grey 2.8mm Header
7283-3243-40
Female housing | 8 poles; polarity A; Light Grey
7283-9450-30
Female housing | 20 poles; polarity A; Black 6x2.8, 14x1.5
7283-4190-30
Female housing | 43 poles; polarity A; Black 34x1.5, 6x2.8, 3x6.3
7283-3244-60
Female housing | 8 poles; polarity B; Green/ Direct only
7283-4192-40
Female housing | 43 poles; polarity B; Light Grey 34x1.5, 6x2.8, 3x6.3
7283-6448-40
Female housing | 8 poles; polarity A; Light Grey 6 x1.5, 2x2.8
7283-6468-60
Female housing | 12 poles; polarity B; Green
7283-6446-40
Female housing | 4 poles; polarity A; Light Grey
7283-9151-30
Female housing | 34 poles; polarity A; Black 1x6.3, 6x2.8, 27x1.5
7283-2784-30
Female housing | 38 poles; polarity A; Black 30x0.64, 8.2.8
Currently unavailable
7283-3242-60
Female housing | 6 poles; polarity B; Green/ Direct only
Currently unavailable
7283-6459-40
Female housing | 10 poles; polarity A; Light Grey 6x1.5, 4x2.8
