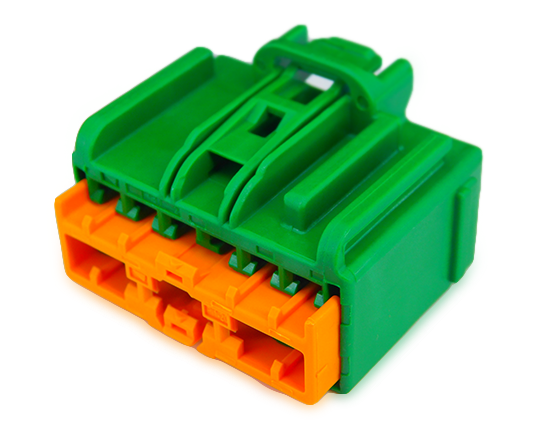

Yazaki - 7283-6468-60
7283-6468-60
Regular price
$3.39
Minimum order: 25
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 25 | $3.39 | $84.75 |
| 100 | $2.84 | $284.00 |
| 500 | $2.28 | $1,140.00 |
| 1200 | $1.72 | $2,064.00 |
Yazaki - 7283-6468-60
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC KAIZEN 2.8 unsealed |
| Number of positions | 12 |
| Gender | Female |
| Color | Green |
| Sealing | Unsealed |
| Polarity | B |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 6
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7116-4111-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4112-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7116-4110-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4271-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4272-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7116-4270-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
Used with 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
