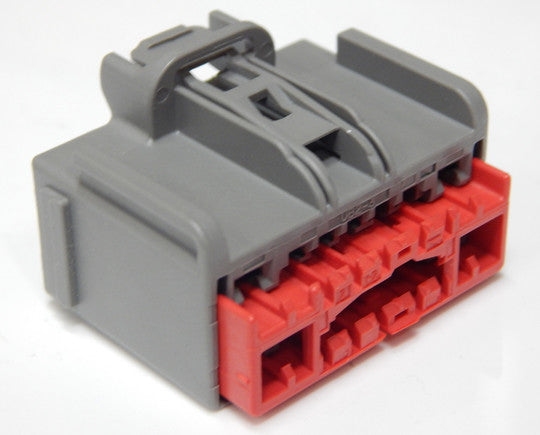

YES/YESC Kaizen Series Connectors | Hybrid Unsealed 14 Position Female Light Gray Housing
7283-6447-40
Regular price
$1.49
Minimum order: 25
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 25 | $1.49 | $37.25 |
| 100 | $1.12 | $112.00 |
| 500 | $0.88 | $440.00 |
| 1200 | $0.75 | $900.00 |
YES/YESC Kaizen Series Connectors | Hybrid Unsealed 14 Position Female Light Gray Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC Header / YESC KAIZEN Hybrid / YESC KAIZEN Header |
| Number of positions | 14 |
| Gender | Female |
| Color | Light Grey |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 12
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7116-4101-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4111-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4100-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4112-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7116-4100-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4781-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4780-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4110-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4271-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4272-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7116-4270-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4101-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
Used with 2
Use the listed polarity and configuration; standard and CPA versions are alternatives.
