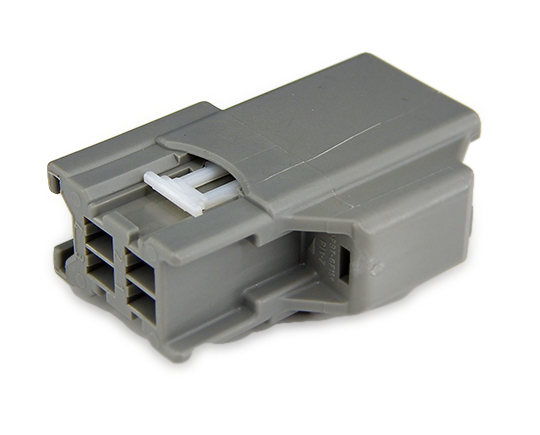

Yazaki - YES/YESC Kaizen Series Connectors | 1.5X0.8 Unsealed 4 Position Male Light Gray Housing
7282-6449-40
Regular price
$1.22
Minimum order: 50
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 50 | $1.22 | $61.00 |
| 100 | $1.02 | $102.00 |
| 500 | $0.82 | $410.00 |
| 1200 | $0.62 | $744.00 |
Yazaki - YES/YESC Kaizen Series Connectors | 1.5X0.8 Unsealed 4 Position Male Light Gray Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC KAIZEN 1.5 unsealed |
| Number of positions | 4 |
| Gender | Male |
| Color | Light Grey |
| Sealing | Unsealed |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Covers and mounting 1
Terminals 4
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7114-4100-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4100-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4101-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7114-4101-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
Connectors and housings 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
