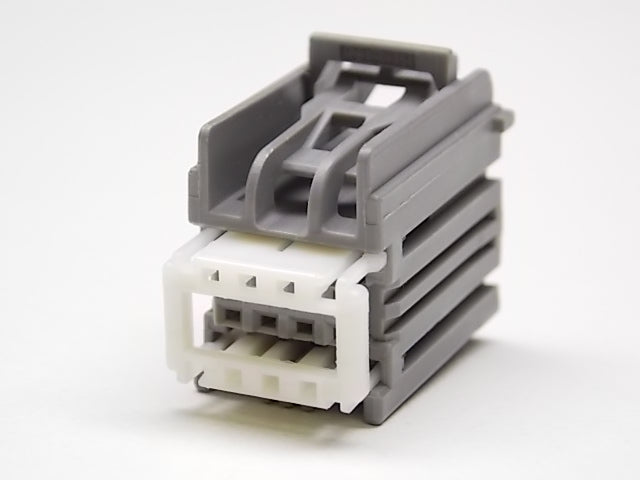

YES/YESC Kaizen Series Connectors Unsealed 8 Position Female Light Gray Housing
7283-9029-40
Regular price
$1.72
Minimum order: 20
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 20 | $1.72 | $34.40 |
| 50 | $1.29 | $64.50 |
| 154 | $1.12 | $172.48 |
| 308 | $0.99 | $304.92 |
| 770 | $0.89 | $685.30 |
YES/YESC Kaizen Series Connectors Unsealed 8 Position Female Light Gray Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC KAIZEN 0.64 unsealed |
| Number of positions | 8 |
| Gender | Female |
| Color | Light Grey |
| Sealing | Unsealed |
| Polarity | B |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 4
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7116-4618-02
0.64 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4619-02
0.64 mm terminal; Plating: Sn; Europe wire mm2: 0.75; U.S. wire AWG: 18
7116-4618-08
0.64 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
Currently unavailable
7116-4619-08
0.64 mm terminal; Plating: Au; Europe wire mm2: 0.75; U.S. wire AWG: 18
Currently unavailable
