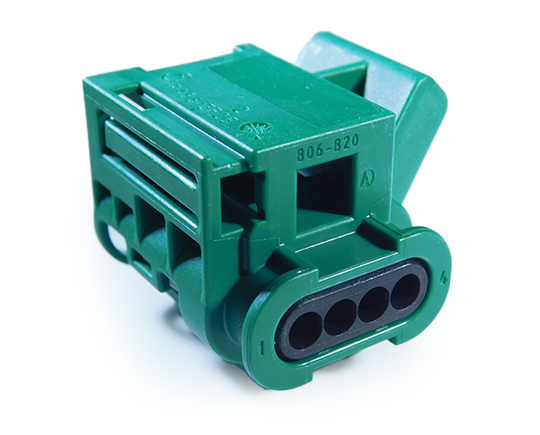

Hirschmann - 4 WAY TUGN FEM CONN A 1.2MM SER
Hirschmann - 4 WAY TUGN FEM CONN A 1.2MM SER
Product specifications
| Manufacturer | Hirschmann Automotive |
|---|---|
| Product type | Connectors |
| Product category | Low Voltage Connectors |
| Product family | Service Disconnect |
| Series | Service Disconnect 1.2 |
| Catalog option | Cavity plug diameter: Ø 3.55 mm connector cavity; Coding: A; CPA: with CPA (see matching part); LV214: TK2; Maximum mating/unmating force: ≤ 75 N; Terminal rows: 1 row; Compatible terminal system: Kostal MLK 1.2-Sm: DOC00079128; TPA: with TPA; USCAR2: S2 v S3 |
| Number of positions | 4 |
| Gender | Female |
| Color | turquoise |
| Material | PA66 GF25 |
| Sealing | sealed |
| Terminal size | 1.2 mm |
| Wire section | max. 2.5 mm² |
| Voltage rating | ≤ 60 V |
| Terminal style | Locking Lance (LL) |
| Protection class | IPX8, IPX9K |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Mating counterparts 1
Hirschmann Automotive identifies these products as matching plug and receptacle counterparts.
