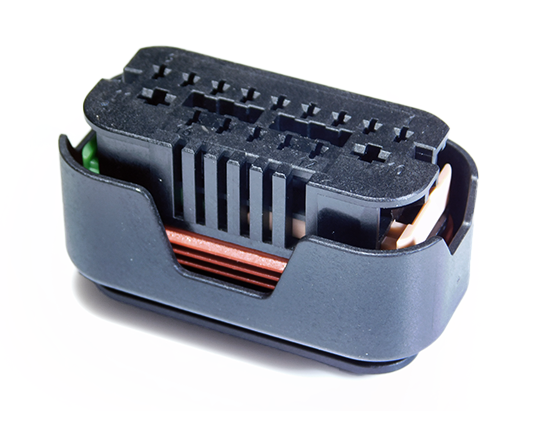

Hirschmann - 16-WAY HYBRID FEMALE
809-129-501
Regular price
$6.95
Minimum order: 10
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 10 | $6.95 | $69.50 |
| 100 | $5.33 | $533.00 |
| 500 | $4.89 | $2,445.00 |
Hirschmann - 16-WAY HYBRID FEMALE
Product specifications
| Manufacturer | Hirschmann Automotive |
|---|---|
| Product type | Connectors |
| Product category | Low Voltage Connectors |
| Product family | Hybrid Connectors |
| Series | MSE-I |
| Catalog option | Cavity plug diameter: Ø 3.55 mm connector cavity, Ø 5.18 mm connector cavity; Coding: A; CPA: with CPA; LV214: LV214: TMAX (150°C) = 3,000 H; Maximum mating/unmating force: not applicable; Terminal rows: 2 rows; Compatible terminal system: Kostal MLK 1.2-Sm: DOC00072546, Kostal MLK 1.2-Sm: DOC00079128, Kostal SLK 2.8: DOC00043218; TPA: with TPA; USCAR2: T4/V2/S2 v S3 |
| Number of ways | 14way, 2way |
| Gender | Female |
| Color | black |
| Material | PA66 GF25 |
| Sealing | sealed |
| Terminal size | 1.2 mm, 2.8 mm |
| Wire section | max. 1.0 mm², max. 2.5 mm² |
| Voltage rating | ≤ 60 V |
| Terminal style | Locking Lance (LL) |
| Protection class | IPX8, IPX9K |
