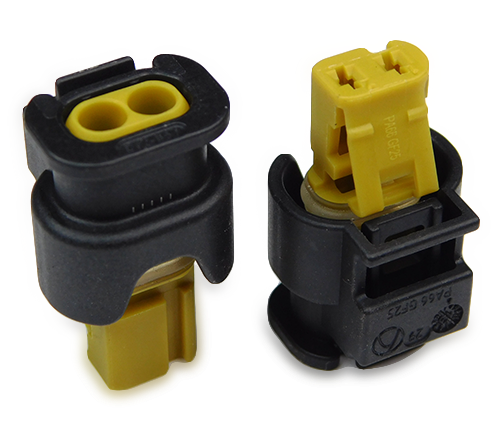

Connector-872-857-565
Connector-872-857-565
Product specifications
| Manufacturer | Hirschmann Automotive |
|---|---|
| Product type | Connectors |
| Product category | Low Voltage Connectors |
| Product family | SealStar |
| Series | SealStar 1.2 |
| Catalog option | Cavity plug diameter: Ø 3.55 mm connector cavity; Coding: A; CPA: without CPA; LV214: TK3/SG4; Maximum mating/unmating force: ≤ 80 N; Terminal rows: 1 row; Compatible terminal system: Kostal MLK 1.2-Sm: DOC00072546, Kostal MLK 1.2-Sm: DOC00079128, TE MCON 1.2 LL: C-1452674; TPA: with TPA Latch; USCAR2: T3/V3/S2 v S3 |
| Number of positions | 2 |
| Gender | Female |
| Color | curry |
| Material | PA66 GF25 |
| Sealing | sealed |
| Terminal size | 1.2 mm |
| Wire section | max. 1.0 mm² |
| Voltage rating | ≤ 60 V |
| Terminal style | Locking Lance (LL) |
| Protection class | IPX8, IPX9K |
