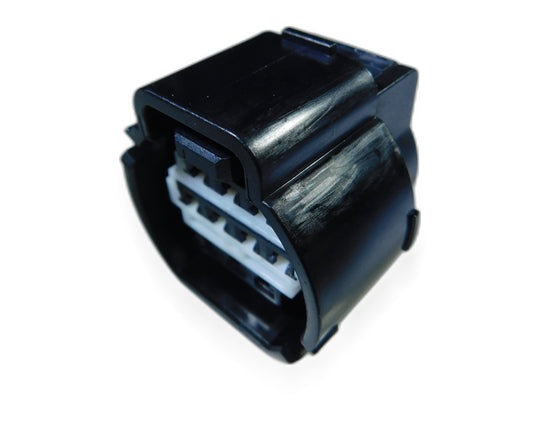

090II WP 10F ASSY(HEAD LAMP)
090II WP 10F ASSY(HEAD LAMP)
Product specifications
| Manufacturer | KET |
|---|---|
| Product type | Lighting Connector |
| Product category | Automotive Connectors > Lighting Connector > Lamp Connector |
| Product family | Lamp Connector |
| Series | LAMP CONNECTOR SERIES |
| Technology | Pitch 5 mm; Contact resistance: 3mΩ MAX (Initial); Insulation resistance: DC 500V 100MΩ MIN; TPA: YES |
| Number of positions | 10 |
| Gender | Female |
| Color | Black |
| Sealing | Sealed |
| Terminal size | .090 in |
| Wire section | avss 0.3-,avss 0.5,avss(cavs) 0.85-,avss(cavs) 1.25,avss 2.0,aexf 1.25 |
| Current rating | 10 A |
