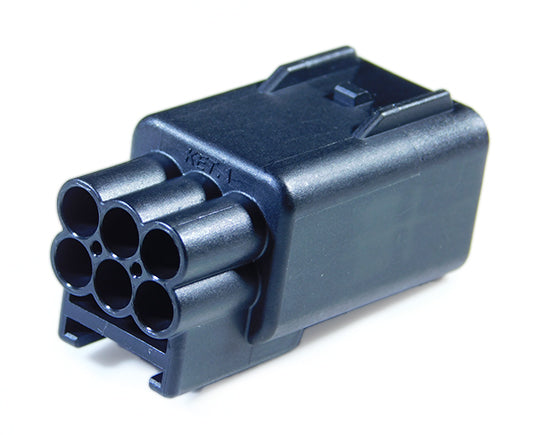

KET - MG655640-5
MG655640-5
Regular price
$1.49
Minimum order: 50
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 50 | $1.49 | $74.50 |
| 100 | $1.25 | $125.00 |
| 250 | $0.98 | $245.00 |
| 1000 | $0.89 | $890.00 |
KET - MG655640-5
Product specifications
| Manufacturer | KET |
|---|---|
| Product type | Wire-to-Wire Connector |
| Product category | Automotive Connectors > Wire To Wire Connector |
| Product family | Wire To Wire Connector |
| Series | N060 SERIES |
| Technology | Pitch 5 mm; Primary lock: HSG Lance; Contact resistance: 5mΩ MAX (Initial); Insulation resistance: DC 500V 100MΩ MIN; TPA: YES |
| Number of positions | 6 |
| Gender | Male |
| Color | Black |
| Material | PBT |
| Sealing | Sealed |
| Terminal size | .060 in |
| Wire section | aexf0.3~0.5,avssxf0.3~0.5,aexf0.85~1.25,avssxf0.85~1.25 |
| Current rating | 10 A |
