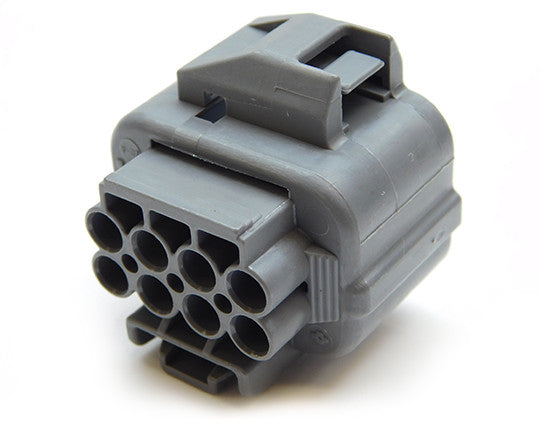

Housing 8 way
Housing 8 way
Product specifications
| Manufacturer | Sumitomo |
|---|---|
| Product type | Housing |
| Series | HW Sealed |
| Number of positions | 8 |
| Gender | Female |
| Color | Dark Gray |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 3
Catalog-listed options: choose the appropriate series, gender, positions, wire gauge, plating and seal size. The listed variants are alternatives.
1500-0106
Series: HM Sealed & HW Sealed; Gender: Female; Plating: Tin Plated; AWG: 14; Catalog context: HW Sealed
1500-0110
Series: MT Sealed & HW Sealed; Gender: Female; Plating: Tin-Plated; AWG: 14; Catalog context: HW Sealed
1500-0133
Series: HW Sealed; Gender: Female; Plating: Gold-plated; AWG: 14
Currently unavailable
Connectors and housings 1
Catalog-listed options: choose the appropriate series, gender, positions, wire gauge, plating and seal size. The listed variants are alternatives.
Used with 1
Catalog-listed options: choose the appropriate series, gender, positions, wire gauge, plating and seal size. The listed variants are alternatives.
Seals and plugs 4
Catalog-listed options: choose the appropriate series, gender, positions, wire gauge, plating and seal size. The listed variants are alternatives.
7161-9787
Series: TS Sealed, SL Sealed, DL Sealed, MT Sealed, HW Sealed; Gender: Common; Color: Brown; AWG: 14 & 16
7165-0119
Series: DL Sealed & HW Sealed; Gender: Common; Color: Brown; AWG: 14; Catalog context: DL Sealed
7165-0118
Series: DL Sealed & HW Sealed; Gender: Common; Color: Blue; AWG: 14; Catalog context: HW Sealed
7165-0385
Series: HX Sealed & HW Sealed; Gender: Common; Color: Gray; AWG: 14; Catalog context: HW Sealed
