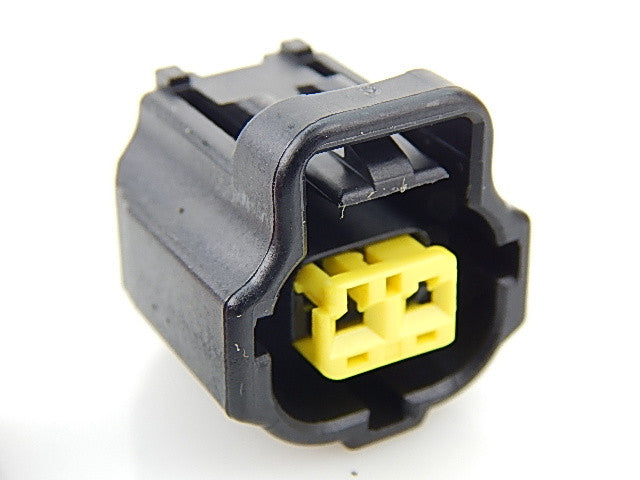

184000-1
184000-1
Product specifications
| Manufacturer | TE Connectivity |
|---|---|
| Product type | Automotive Housings |
| Product category | Automotive Parts |
| Product family | AMP |
| Series | Sealed Sensor Connector SSC System |
| Technology | Connector system: Wire-to-Wire; Wire-to-Wire, Connector Seal Code=; Application: Power |
| Packaging | Quantity: 1800; Method: Package |
| Number of positions | 2 |
| Gender | Contact: Receptacle |
| Color | Black |
| Material | Housing: Polybutylene Terephthalate (PBT) |
| Sealing | Sealable: Yes |
| Polarity | A |
| Terminal size | 1.8mm |
| Current rating | 13 A |
| Voltage rating | 125 VAC; 125 VDC |
| Operating temperature | -40 – 150 °C[-40 – 302 °F]; -40 – 150 °C |
| Full height | 24.05 mm[.95 in]; 24.05 mm |
| Terminal width | 1.8 mm[.071 in]; 1.8 mm |
| Shape | Rectangular |
| Overall length | 22 mm[.87 in] |
| Cable entry | 180 ° |
| Catalog bag / box quantity | 1800 |
| Overall width | 27.6 mm[1.08 in] |
