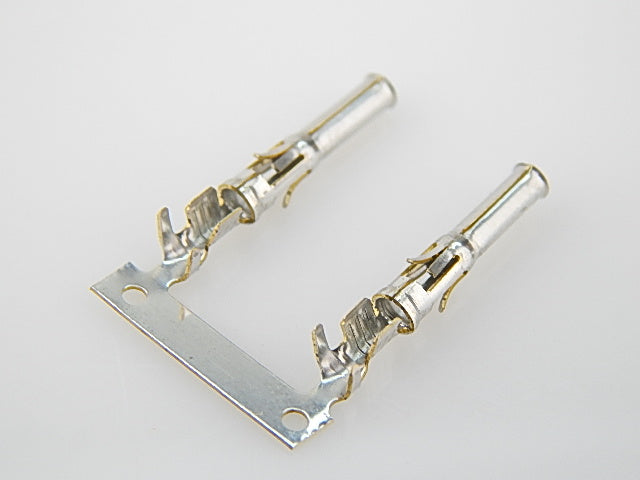

Pin & Socket Connectors TYP VI
Pin & Socket Connectors TYP VI
Product specifications
| Manufacturer | TE Connectivity |
|---|---|
| Product type | Connector Contacts |
| Product category | Connectors |
| Product family | AMP |
| Series | AMP Type IV |
| Technology | Application: Power |
| Termination | Wire/cable: Crimp |
| Packaging | Method: Strip |
| Gender | Contact: Socket |
| Material | Contact: Brass |
| Plating | Contact: Tin (Sn) |
| Sealing | Sealable: No |
| Terminal size | Size 16 |
| Wire gauge | .3 – .9 mm²; 22 – 18 AWG AWG |
| Wire outside diameter | 1.27 – 2.79 mm[.05 – .11 in]; 1.27 – 2.79 mm |
| Current rating | 1.8 A |
| Voltage rating | 250 VDC; 250 VAC |
| Operating temperature | -55 – 90 °C[-67 – 194 °F]; -55 – 90 °C |
