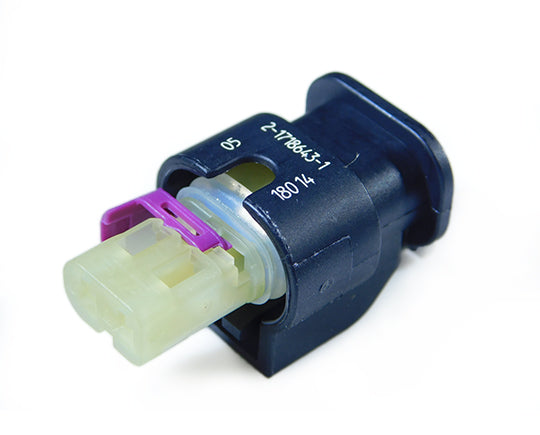

2pos, MCON 1.2 - LL Connector Sealed
2pos, MCON 1.2 - LL Connector Sealed
Product specifications
| Manufacturer | TE Connectivity |
|---|---|
| Product type | Automotive Housings |
| Product category | Automotive Parts |
| Product family | MCON |
| Series | MCON 1.2mm |
| Technology | Connector system: Wire-to-Board,Wire-to-Device,Wire-to-Wire; Application: Power |
| Number of positions | 2 |
| Gender | Contact: Receptacle |
| Color | Natural |
| Material | Housing: PA 66 GF30 |
| Sealing | Sealable: Yes; IP rating: IPX4K,IPX9K |
| Polarity | B |
| Terminal size | 1.2mm |
| Current rating | 25 A |
| Operating temperature | -40 – 130 °C[-40 – 266 °F]; -40 – 130 °C |
| Full height | 14.8 mm[.583 in]; 14.8 mm |
| Terminal width | 1.2 mm[.047 in]; 1.2 mm |
| Shape | Rectangular |
| Overall length | 15 mm[.591 in] |
| Cable entry | 180 ° |
| Overall width | 26.5 mm[1.043 in] |
| Protection class | IPX4K,IPX9K |
