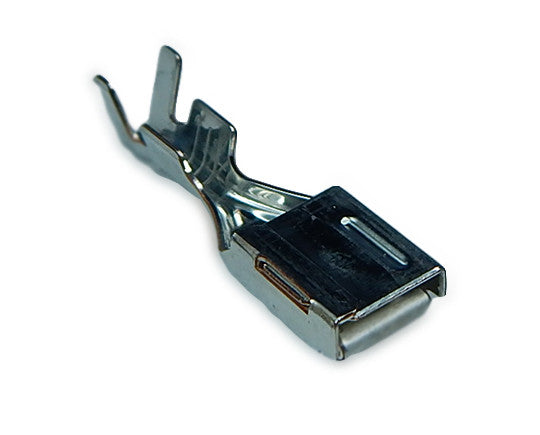

YES/YESC Kaizen Series Connectors Unsealed Female Tin Plating Terminal
7116-4121-02
Regular price
$0.49
Minimum order: 100
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 100 | $0.49 | $49.00 |
| 500 | $0.39 | $195.00 |
| 1000 | $0.29 | $290.00 |
| 1500 | $0.25 | $375.00 |
| 4500 | $0.19 | $855.00 |
YES/YESC Kaizen Series Connectors Unsealed Female Tin Plating Terminal
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Terminal |
| Gender | Female |
| Plating | Tin (Sn) |
| Terminal size | 6.3 mm |
| Wire gauge | 14 AWG |
| Wire section (Europe) | 1.5 – 2.5 mm² |
| Wire section (Japan) | 2.0 mm² |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Used with 29
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7283-6376-30
Female housing | 26 poles; polarity A; Black 22x1.5, 2x2.8, 2x6.3
7283-6569-40
Female housing | 13 poles; polarity A; Light Grey 11x2.8,2x6.3
7283-6469-40
Female housing | 4 poles; polarity A; Light Grey | 4 poles; polarity A; Black 6.3mm Header
7283-6458-40
Female housing | 2 poles; polarity A; Light Grey 6.3mm Header | 2 poles; polarity A; Black 6.3mm Header | 2 poles; polarity A; Light Grey
7283-4190-30
Female housing | 43 poles; polarity A; Black 34x1.5, 6x2.8, 3x6.3
7283-4192-40
Female housing | 43 poles; polarity B; Light Grey 34x1.5, 6x2.8, 3x6.3
7283-5628-40
Female housing | 3 poles; polarity A; Light Grey 1x1.5, 2x6.3
7283-3741-60
Female housing | 6 poles; polarity B; Green
7283-5603-40
Female housing | 6 poles; polarity A; Light Grey
7283-3740-40
Female housing | 6 poles; polarity A; Light Grey
7283-9151-30
Female housing | 34 poles; polarity A; Black 1x6.3, 6x2.8, 27x1.5
7283-5643-40
Female housing | 13 poles; polarity A; Light Grey 11x2.8, 2x6.3
Currently unavailable
7283-6373
Female housing | 15 poles; polarity B; Natural 9x2.8, 6x6.3
Currently unavailable
7283-8393-80
Female housing | 26 poles; polarity E; Brown 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7283-6537-30
Female housing | 26 poles; polarity A; Black 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7283-8391-40
Female housing | 26 poles; polarity C; Light Grey 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7283-8392-60
Female housing | 26 poles; polarity D; Green 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7283-6438-60
Female housing | 26 poles; polarity C; Green 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7283-5625-40
Female housing | 13 poles; polarity A; Light Grey 11x2.8, 2x6.3
Currently unavailable
7283-6437-90
Female housing | 26 poles; polarity B; Blue 22x1.5, 2x2.8, 2x6.3
7283-9504-30
Female housing | 28 poles; polarity A; Black 4x6.3, 24x0.64
Currently unavailable
7283-5601-40
Female housing | 2 poles; polarity A; Light Grey 6.3mm Header | 2 poles; polarity A; Black 6.3mm Header
Currently unavailable
7283-6372-30
Female housing | 15 poles; polarity A; Black 9x2.8, 6x6.3
Currently unavailable
7283-6436-40
Female housing | 26 poles; polarity A; Light Grey 22x1.5, 2x2.8, 2x6.3
Currently unavailable
7283-5631-30
Female housing | 26 poles; polarity A; Black 20x2.8, 6x6.3/HPA
Currently unavailable
7283-4846-30
Female housing | 36 poles; polarity A; Black 20x1.5, 12x2.8, 4x6.3/PBT
Currently unavailable
7283-4847-30
Female housing | 68 poles; polarity A; Black 56x1.5, 8x2.8, 4x6.3/PBT
Currently unavailable
7283-5632-40
Female housing | 26 poles; polarity B; Light Grey 20x2.8, 6x6.3/HPA
Currently unavailable
7283-8390
Female housing | 26 poles; polarity B; Natural 22x1.5, 2x2.8, 2x6.3
Currently unavailable
