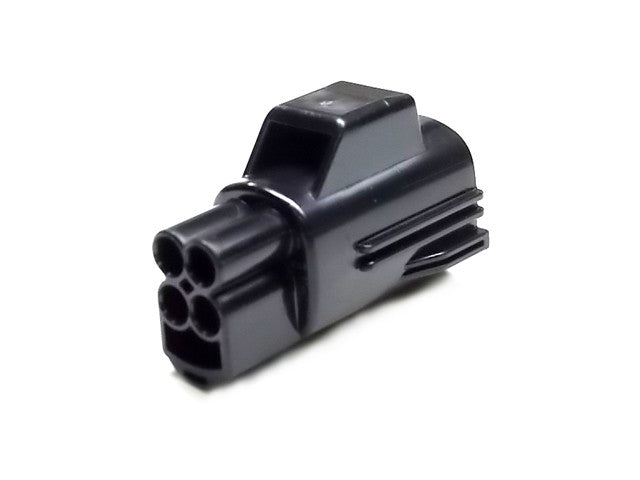

YES/YESC Kaizen Series Connectors | 1.5X0.8 Sealed 4 Position Male Black Housing
YES/YESC Kaizen Series Connectors | 1.5X0.8 Sealed 4 Position Male Black Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC 1.5 sealed |
| Number of positions | 4 |
| Gender | Male |
| Color | Black |
| Sealing | Sealed |
| Polarity | 2-Row B |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 4
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7114-4102-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4102-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7114-4103-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7114-4103-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
Seals and plugs 3
Select wire outside diameter and seal size; plug unused cavities only.
Connectors and housings 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
