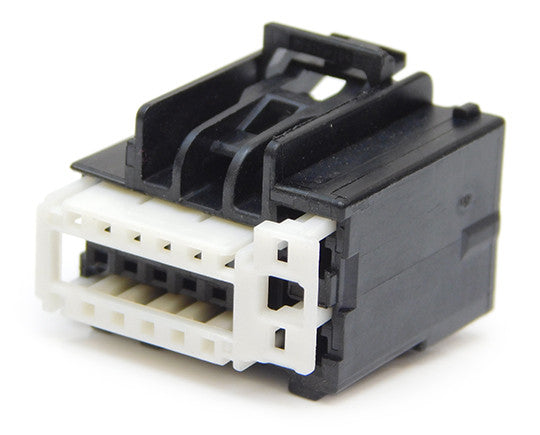

Yesc Kaizen / Gt 150 Unsealed Female 14 Position Black Housing
Yesc Kaizen / Gt 150 Unsealed Female 14 Position Black Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC KAIZEN Hybrid |
| Number of positions | 14 |
| Gender | Female |
| Color | Black |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 6
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7116-4101-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4100-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4100-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4781-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4780-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4101-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
Terminals 4
0.64 mm cavities only; select wire gauge and plating. Refer to the blade-size section.
7116-4618-02
0.64 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4619-02
0.64 mm terminal; Plating: Sn; Europe wire mm2: 0.75; U.S. wire AWG: 18
7116-4618-08
0.64 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
Currently unavailable
7116-4619-08
0.64 mm terminal; Plating: Au; Europe wire mm2: 0.75; U.S. wire AWG: 18
Currently unavailable
