Manufacturer |
Position(s) |
Category/Series |
Sealed Connection |
Gender |
Color/Plating |
Classification |
Datasheet |
| Yazaki | 14 | YES/YESC Kaizen Series Connectors | Hybrid | Unsealed | Female | Light Gray | Housing | Yes |
Manufacturer |
Position(s) |
Category/Series |
Sealed Connection |
Gender |
Color/Plating |
Classification |
Datasheet |
| Yazaki | 14 | YES/YESC Kaizen Series Connectors | Hybrid | Unsealed | Female | Light Gray | Housing | Yes |

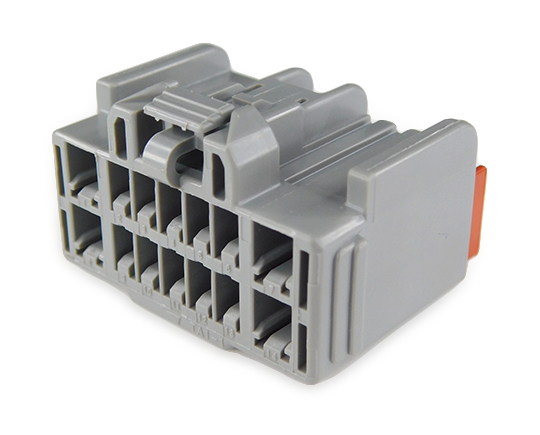

Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC Hybrid / YESC Header |
| Number of positions | 14 |
| Gender | Female |
| Color | Light Grey |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 7
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7116-4101-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4111-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4100-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4112-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 1.5 ~ 2.5; U.S. wire AWG: 14
7116-4100-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4110-02
2.8 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4101-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
Used with 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
