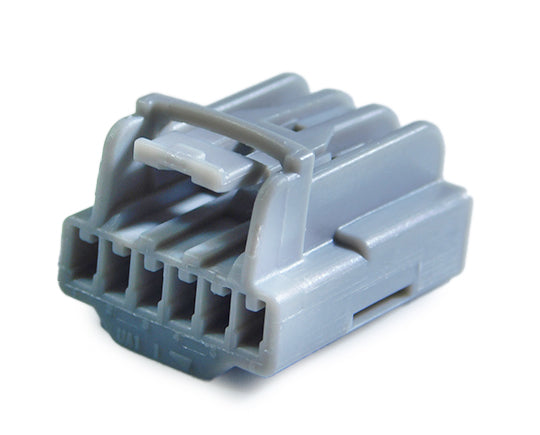

YES/YESC Kaizen Series Connectors | 0.64X0.8 Unsealed 6 Position Female Light Gray Housing
7283-6387-40
Regular price
$3.95
Minimum order: 10
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 10 | $3.95 | $39.50 |
| 25 | $2.59 | $64.75 |
| 50 | $1.78 | $89.00 |
| 100 | $1.39 | $139.00 |
| 200 | $1.14 | $228.00 |
YES/YESC Kaizen Series Connectors | 0.64X0.8 Unsealed 6 Position Female Light Gray Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC 0.64 unsealed |
| Number of positions | 6 |
| Gender | Female |
| Color | Light Grey |
| Sealing | Unsealed |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 4
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7116-4720-02
0.64 mm terminal; Plating: Sn; Europe wire mm2: 0.35; U.S. wire AWG: 22
7116-4721-08
0.64 mm terminal; Plating: Au; Europe wire mm2: 0.5 ~ 0.75; U.S. wire AWG: 20 ~ 18
Currently unavailable
7116-4721-02
0.64 mm terminal; Plating: Sn; Europe wire mm2: 0.5 ~ 0.75; U.S. wire AWG: 20 ~ 18
7116-4720-08
0.64 mm terminal; Plating: Au; Europe wire mm2: 0.35; U.S. wire AWG: 22
Currently unavailable
Used with 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
