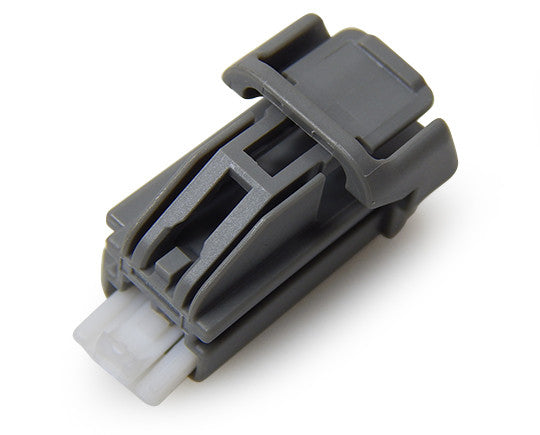

Yazaki - YES/YESC Kaizen Series Connectors | 1.5X0.8 Unsealed 2 Position Female Light Gray Housing
7283-6443-40
Regular price
$2.48
Minimum order: 25
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 25 | $2.48 | $62.00 |
| 100 | $1.89 | $189.00 |
| 250 | $1.76 | $440.00 |
| 1000 | $1.68 | $1,680.00 |
| 3500 | $1.57 | $5,495.00 |
Yazaki - YES/YESC Kaizen Series Connectors | 1.5X0.8 Unsealed 2 Position Female Light Gray Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC KAIZEN 1.5 unsealed |
| Number of positions | 2 |
| Gender | Female |
| Color | Light Grey |
| Sealing | Unsealed |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 6
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7116-4101-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4100-08
1.5 mm terminal; Plating: Au; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4100-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4781-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
7116-4780-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.35 ~ 0.5; U.S. wire AWG: 22 ~ 20
7116-4101-02
1.5 mm terminal; Plating: Sn; Europe wire mm2: 0.75 ~ 1.0; U.S. wire AWG: 18 ~ 16
Used with 1
Use the listed polarity and configuration; standard and CPA versions are alternatives.
