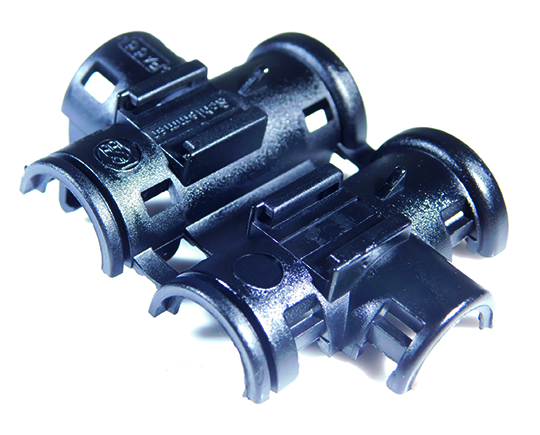

Polyflex T-Manifold - Shape A
Polyflex T-Manifold - Shape A
Product specifications
| Manufacturer | Schlemmer |
|---|---|
| Product type | Manifolds & Branching |
| Product category | Cable Protection Systems |
| Product family | Manifolds |
| Series | T-MANIFOLDS |
| Packaging | Box |
| Catalog option | Current article: 1031796; Old reference: 9806089; Material certification: PFAS, POP's free, Reach, TSCA, RoHS; Production method: Injection; Market / environment: Agricultural equipment, Railway, Construction, Renewable energies, Maritime, Recreational vehicles, Data Center; Flammability: UL94: HB; Output profiles: Outputs A-B-C: 10-10-10; Form: T; Outlets: A: 10; B: 10; C: 10; Profile: 507, A: 10; B: 10; C: 10; Profile: 513, A: 8,5; B: 8,5; C: 8,5; Profile: 508; Gripping: outside gripping; Locking type: Snap lock; Plug/socket slide-in: Yes; Internal stop ridge: No; Spread anchor: No |
| Color | Black |
| Material | Polyamide 66 ( PA66 ) |
| Operating temperature | -40 °C / 135 °C |
| Number of entries | A: 10; B: 10; C: 10; Profile: 507, A: 10; B: 10; C: 10; Profile: 513, A: 8,5; B: 8,5; C: 8,5; Profile: 508 |
| Shape | A |
| Overall width | 26.8 mm |
