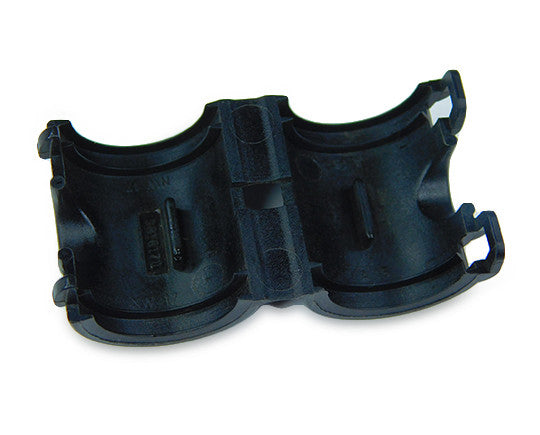

Polyflex A-Manifold - Shape A
Polyflex A-Manifold - Shape A
Product specifications
| Manufacturer | Schlemmer |
|---|---|
| Product type | Manifolds & Branching |
| Product category | Cable Protection Systems |
| Product family | Manifolds |
| Series | A-MANIFOLDS |
| Packaging | Box |
| Catalog option | Current article: 1018746; Old reference: 9810170; Material certification: PFAS, POP's free, Reach, RoHS, TSCA; Production method: Injection; Market / environment: Agricultural equipment, Railway, Construction, Renewable energies, Maritime, Recreational vehicles, Data Center; Flammability: UL94: HB; Output profiles: Outputs A-B: 17; Form: A; Outlets: A: 17; B: 17; Profile: 507, A: 17; B: 17; Profile: 513, A: 15; B: 15; Profile: 508; Gripping: outside gripping; Locking type: Clamp lock; Plug/socket slide-in: No; Internal stop ridge: Yes; Spread anchor: No |
| Color | Black |
| Material | Polyamide 66 ( PA66 ) |
| Operating temperature | -40 °C / 135 °C |
| Number of entries | A: 17; B: 17; Profile: 507, A: 17; B: 17; Profile: 513, A: 15; B: 15; Profile: 508 |
| Shape | A |
| Overall width | 28.4 mm |
