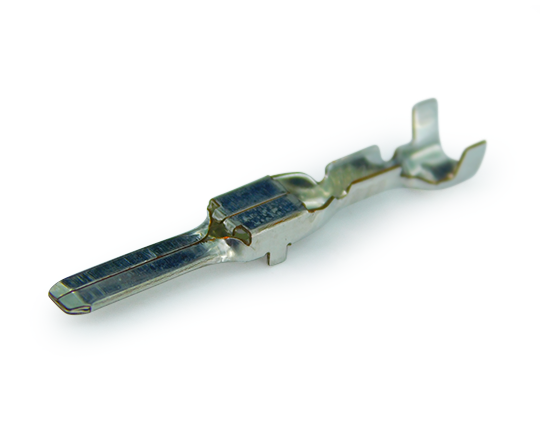

YES/YESC Kaizen Series Connectors Sealed Male Tin Plating Terminal
7114-4150-02
Regular price
$0.39
Minimum order: 200
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 200 | $0.39 | $78.00 |
| 500 | $0.29 | $145.00 |
| 1000 | $0.24 | $240.00 |
| 4500 | $0.19 | $855.00 |
| 18000 | $0.13 | $2,340.00 |
YES/YESC Kaizen Series Connectors Sealed Male Tin Plating Terminal
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Terminal |
| Gender | Male |
| Plating | Tin (Sn) |
| Terminal size | 2.8 mm |
| Wire gauge | 22 – 20 AWG |
| Wire section (Europe) | 0.35 – 0.5 mm² |
| Wire section (Japan) | 0.3 – 0.5 mm² |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Seals and plugs 7
Select seal by wire outside diameter; gauge alone does not determine insulation diameter. Use cavity plugs only for unused positions.
7158-3110-40
Color: Light Grey; material: Silicone; wire O.D. mm: 3.10 ~ 3.3
7158-3112-70
Color: Yellow; material: Silicone; wire O.D. mm: 1.88 ~ 2.1
7158-3111-60
Color: Green; material: Silicone; wire O.D. mm: 1.19 ~ 1.9
7158-3116-50
Color: Red; material: Silicone; wire O.D. mm: 1.88 ~ 2.4
7158-3114-90
Color: Blue; material: Silicone; wire O.D. mm: N/A
7158-3115-80
Color: Brown; material: Silicone; wire O.D. mm: 1.19 ~ 1.9
7158-3113-40
Color: White; material: Silicone; wire O.D. mm: 2.18 ~ 3.0
Used with 6
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
7282-5575-10
Male housing | 2 poles; polarity A; Dark Grey
7282-5570-10
Male housing | 4 poles; polarity A; Dark Grey
7282-5574-10
Male housing | 8 poles; polarity A; Dark Grey
7282-5577-10
Male housing | 6 poles; polarity A; Dark Grey
7282-5576-10
Male housing | 3 poles; polarity A; Dark Grey
Currently unavailable
7282-5571-30
Male housing | 4 poles; polarity B; Black
Currently unavailable
