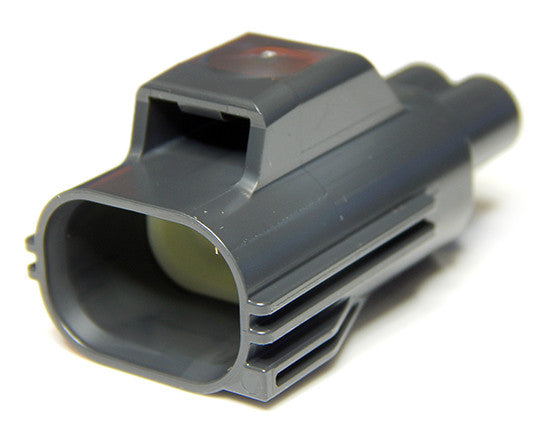

YES/YESC Kaizen Series Connectors | 2.8X0.8 Sealed 2 Position Male Dark Gray Housing
7282-5575-10
Regular price
$2.79
Minimum order: 25
Quantity pricing
| Qty. | Unit price | Ext. price |
|---|---|---|
| 25 | $2.79 | $69.75 |
| 100 | $2.06 | $206.00 |
| 500 | $1.86 | $930.00 |
| 2000 | $1.58 | $3,160.00 |
YES/YESC Kaizen Series Connectors | 2.8X0.8 Sealed 2 Position Male Dark Gray Housing
Product specifications
| Manufacturer | Yazaki |
|---|---|
| Product type | Housing |
| Series | YESC 2.8 sealed |
| Number of positions | 2 |
| Gender | Male |
| Color | Dark Grey |
| Sealing | Sealed |
| Polarity | A |
Complete your assembly
Catalog references
Associated parts
Browse accessories, components, and catalog-linked options.
Terminals 3
Select blade size, wire gauge and plating for the cavity. Listed terminal variants are alternatives.
Seals and plugs 7
Select wire outside diameter and seal size; plug unused cavities only.
7158-3110-40
Color: Light Grey; material: Silicone; wire O.D. mm: 3.10 ~ 3.3
7158-3112-70
Color: Yellow; material: Silicone; wire O.D. mm: 1.88 ~ 2.1
7158-3111-60
Color: Green; material: Silicone; wire O.D. mm: 1.19 ~ 1.9
7158-3116-50
Color: Red; material: Silicone; wire O.D. mm: 1.88 ~ 2.4
7158-3114-90
Color: Blue; material: Silicone; wire O.D. mm: N/A
7158-3115-80
Color: Brown; material: Silicone; wire O.D. mm: 1.19 ~ 1.9
7158-3113-40
Color: White; material: Silicone; wire O.D. mm: 2.18 ~ 3.0
Connectors and housings 2
Use the listed polarity and configuration; standard and CPA versions are alternatives.
